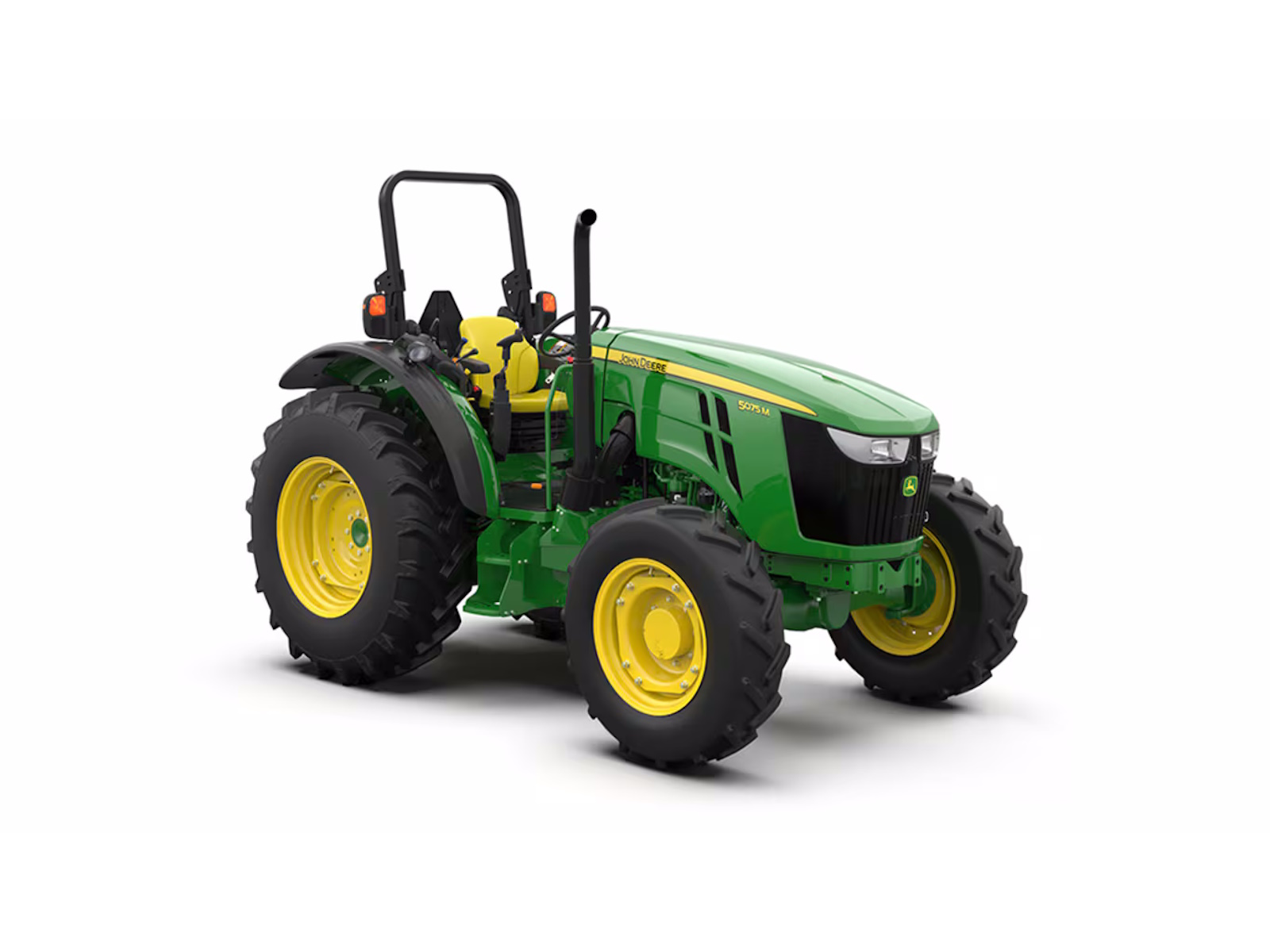

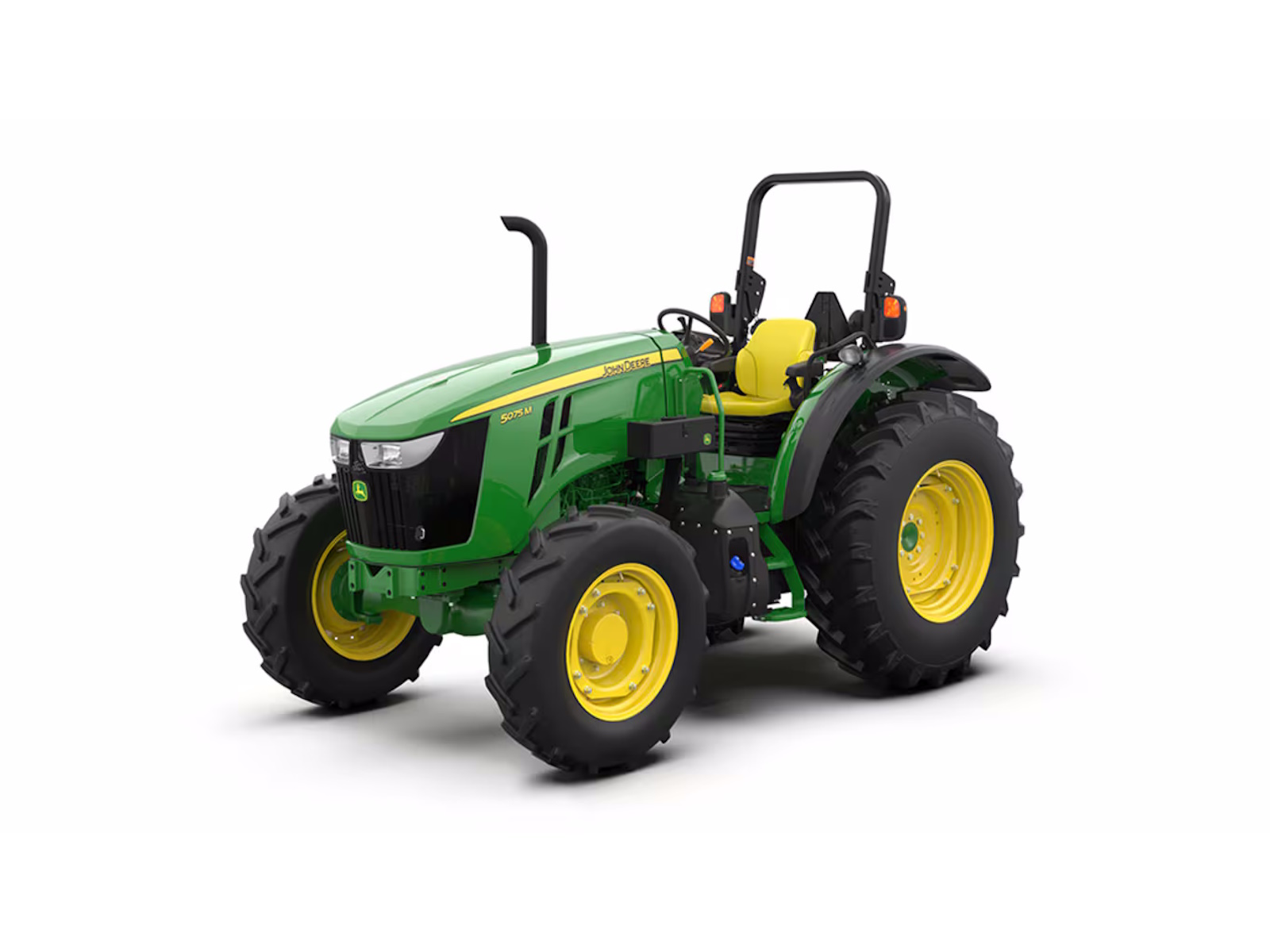

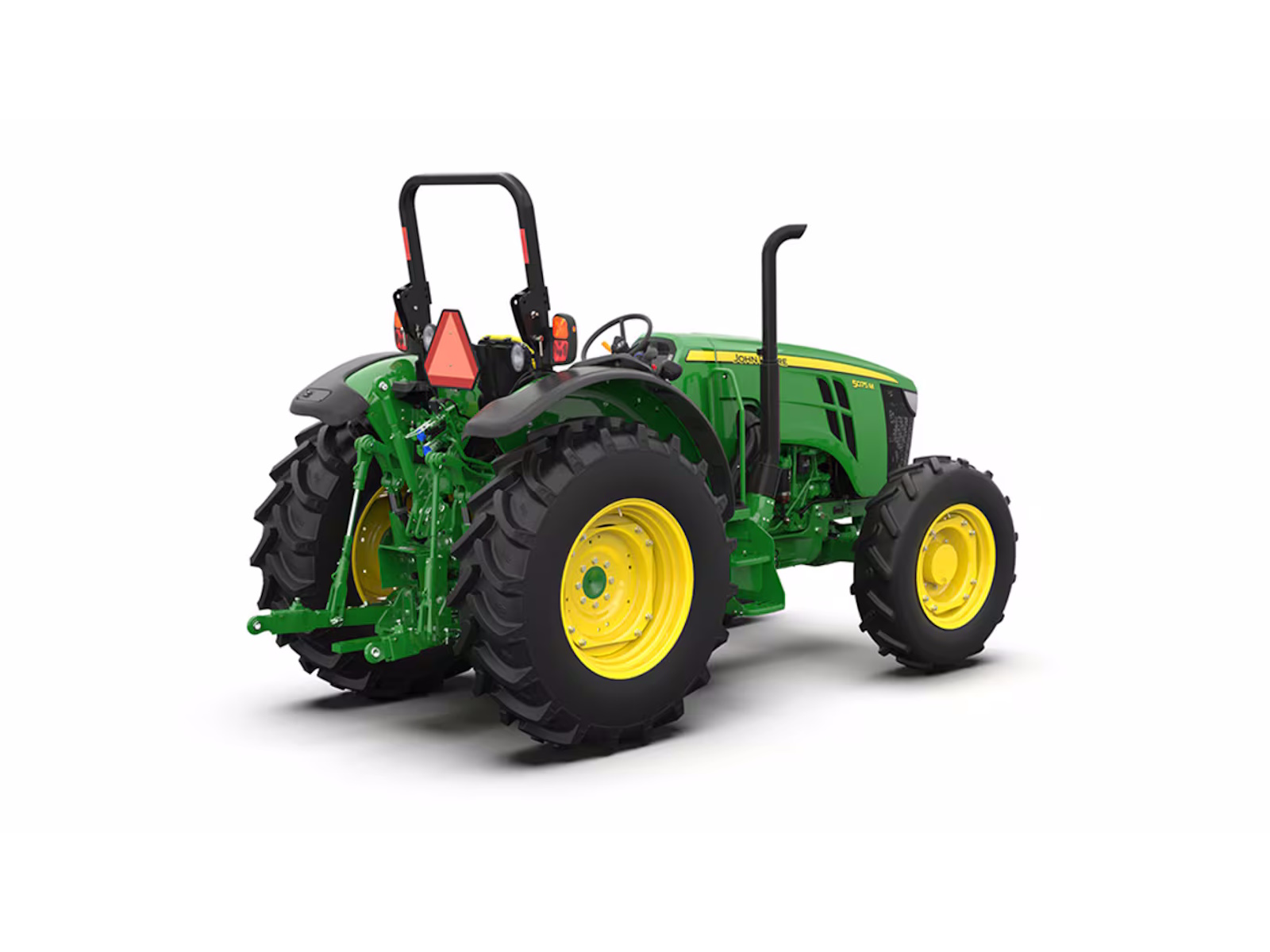

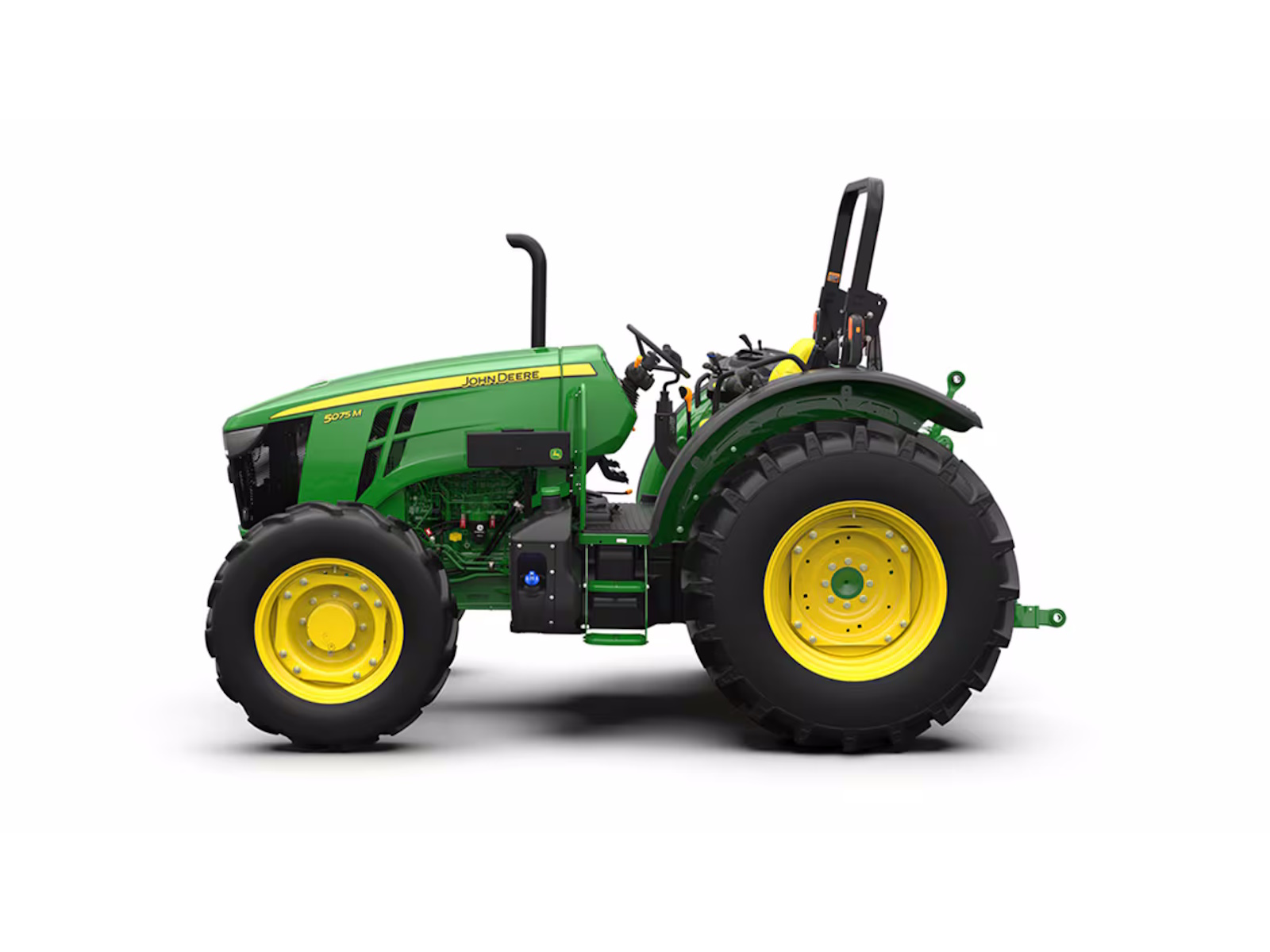

2026 John Deere AG 5075M

Utility Tractor

• PowrReverser™ 16F/16R and 32F/16R Hi-Lo transmission options

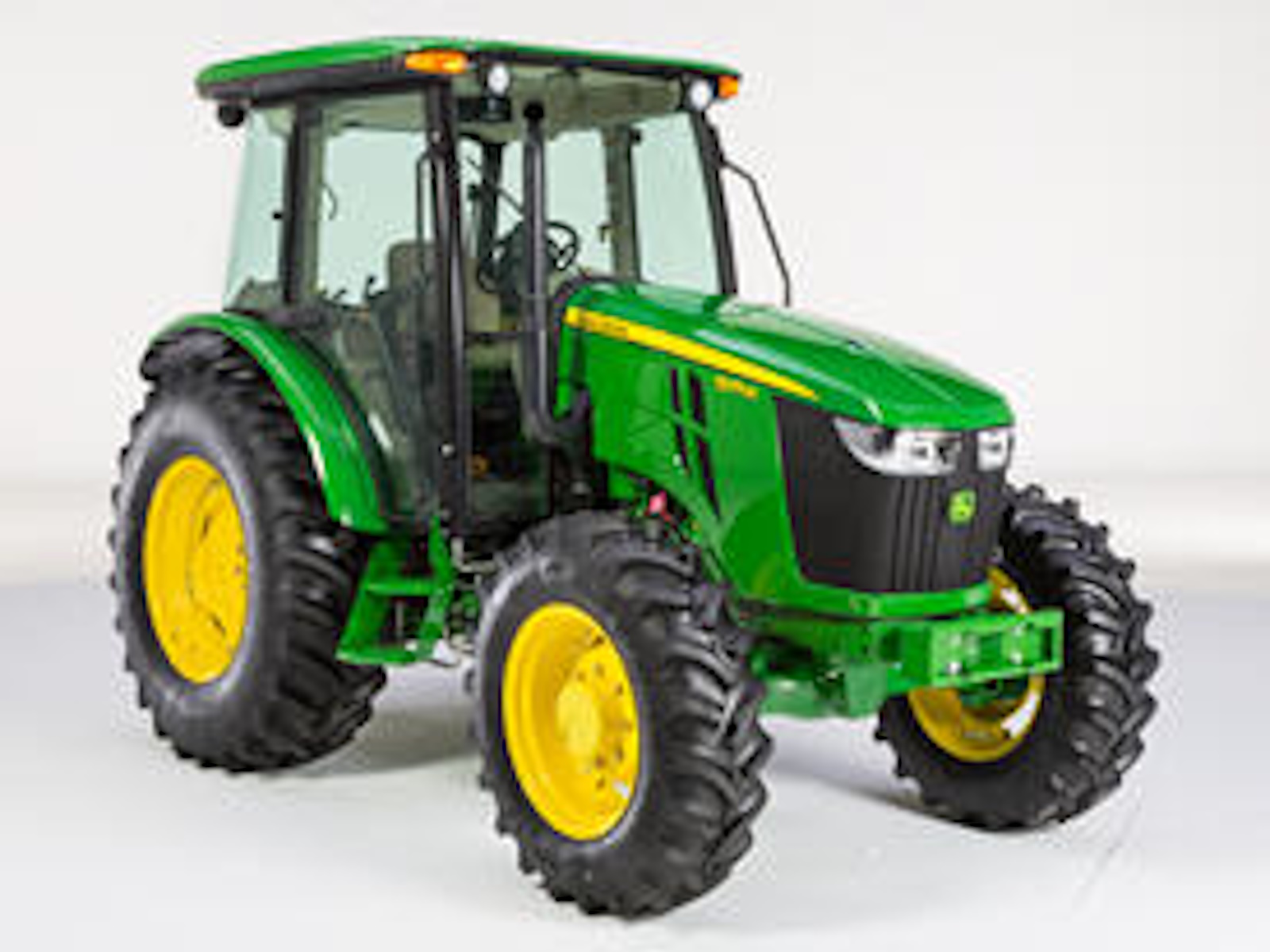

• Choose climate-controlled cab or open station
• Hitch lift capacity of 5,150 lb (2,336 kg) with an option of 5,950 lb (2,699 kg)

Features May Include:

Premium cab for the ultimate operating experience

Overview

• Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.

Benefits

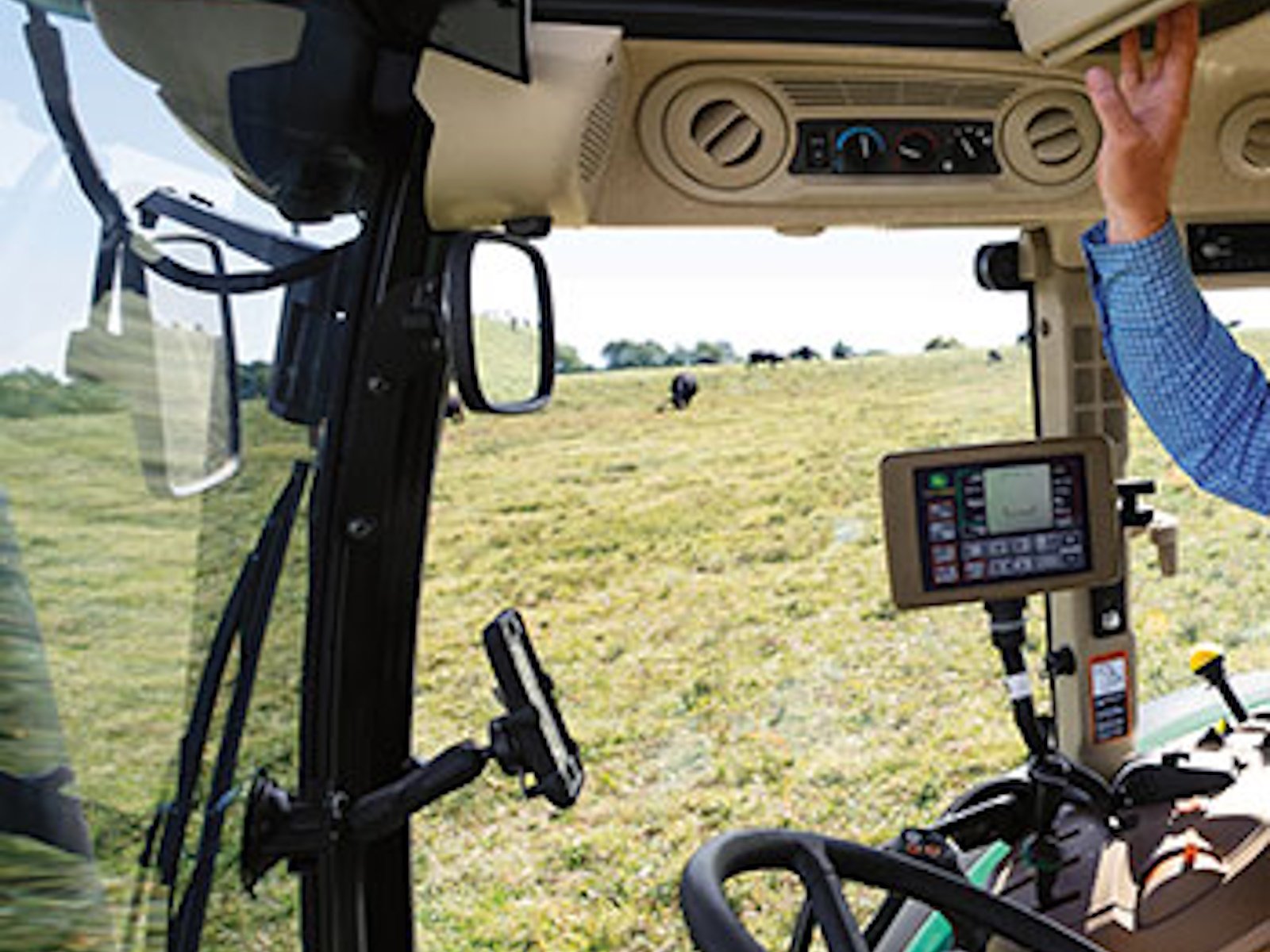

• Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
• Additional storage space with the rear floor mat behind the seat
• Excellent visibility to rear operations with the rearview mirror
• Shield the operator from the sun with an easy-to-use front sunshade

Automotive-style light-emitting diode (LED) instrument cluster

Overview

• Ample speeds and ease of operation for demanding applications with the 16F/16R PowrReverser, providing 16 forward speeds and 16 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work.

Benefits

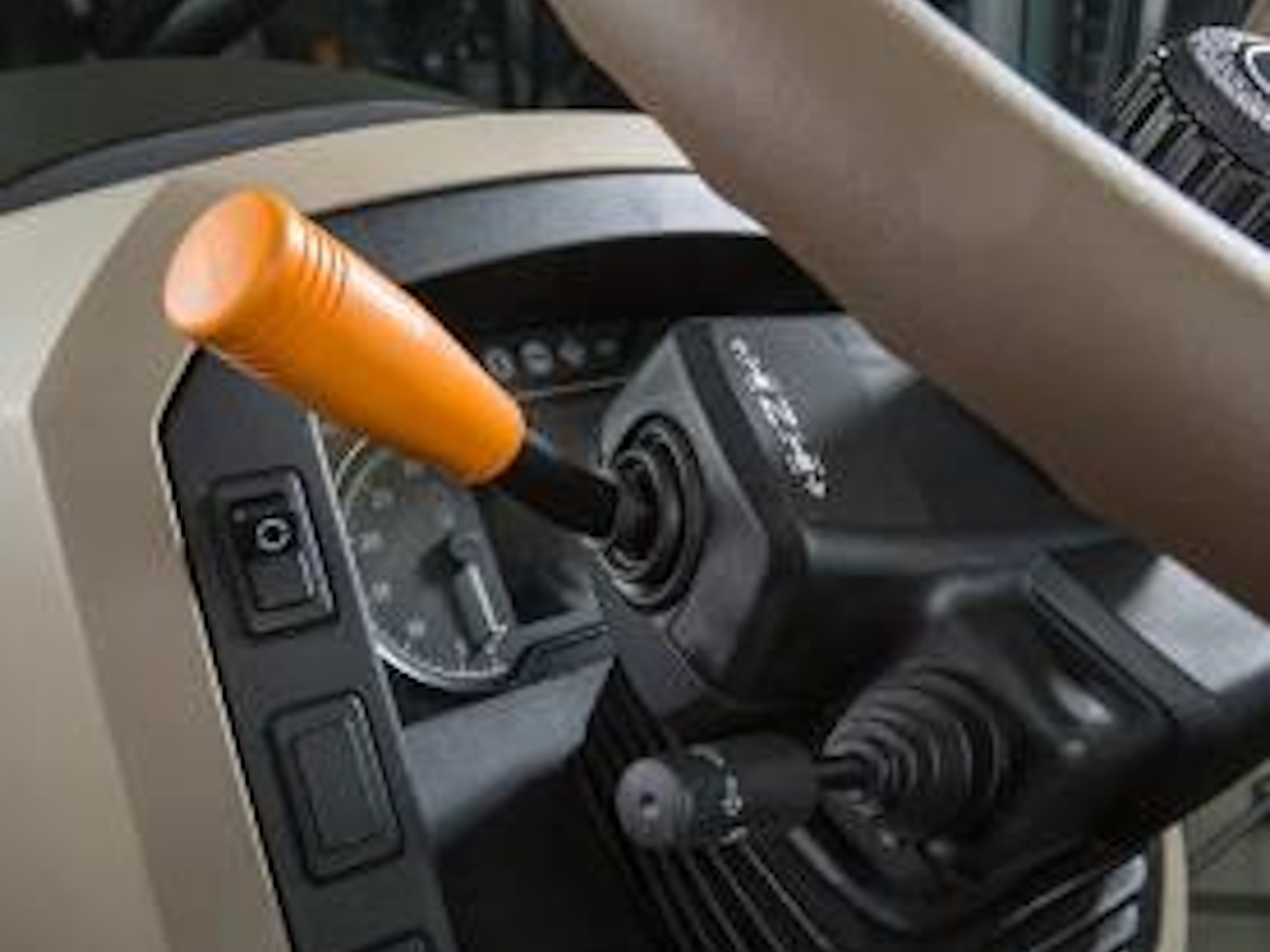

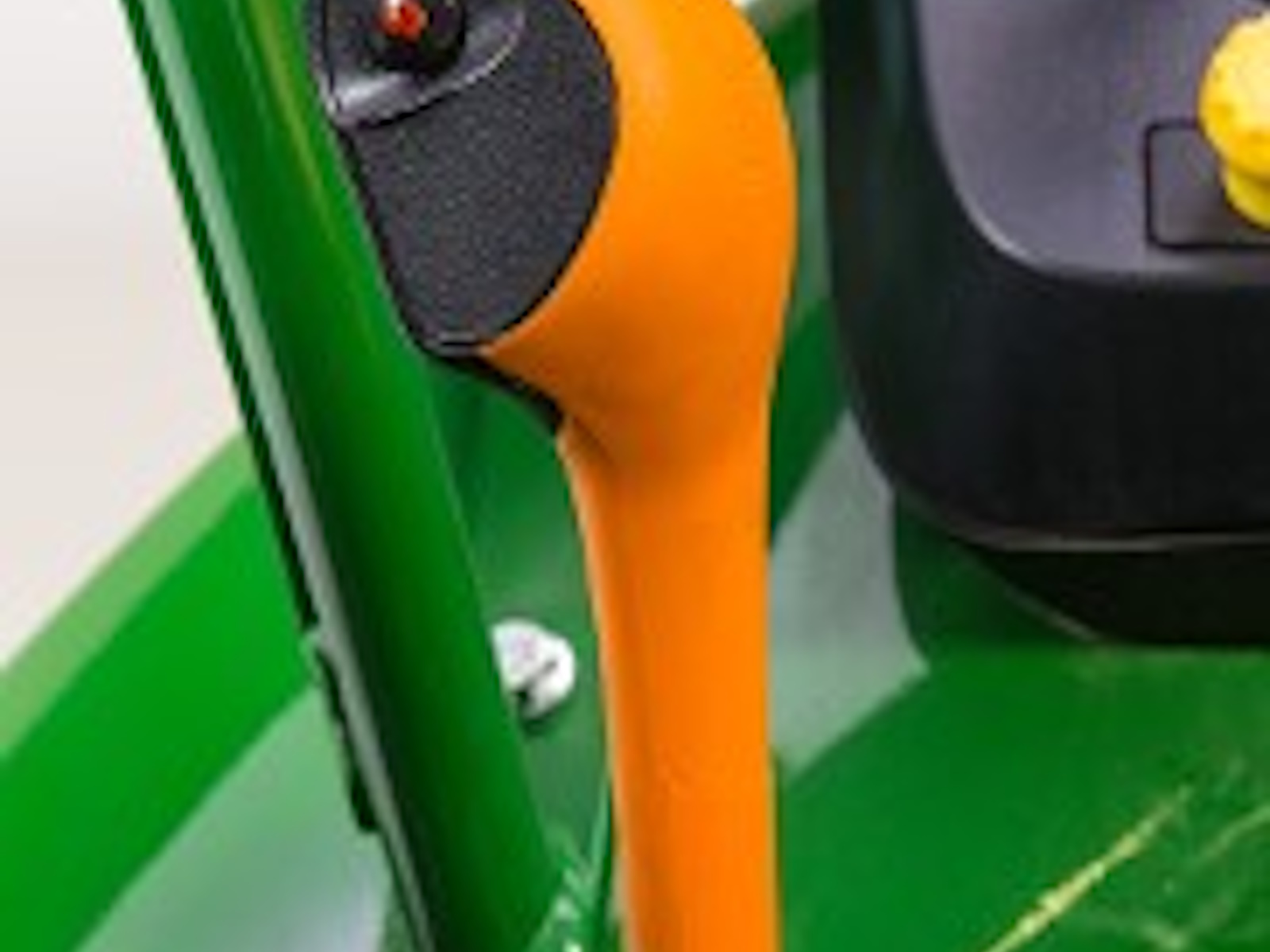

• Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
  • Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
• Ideal for rear blading and any applications that require frequent directional changes in tight spaces
• Clutch-less hydraulic shifting between forward and reverse
• Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

16F/16R transmission includes:

• Hydraulic wet clutches (forward and reverse)
  • Maximize durability and outlast the life of any dry clutch
  • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs

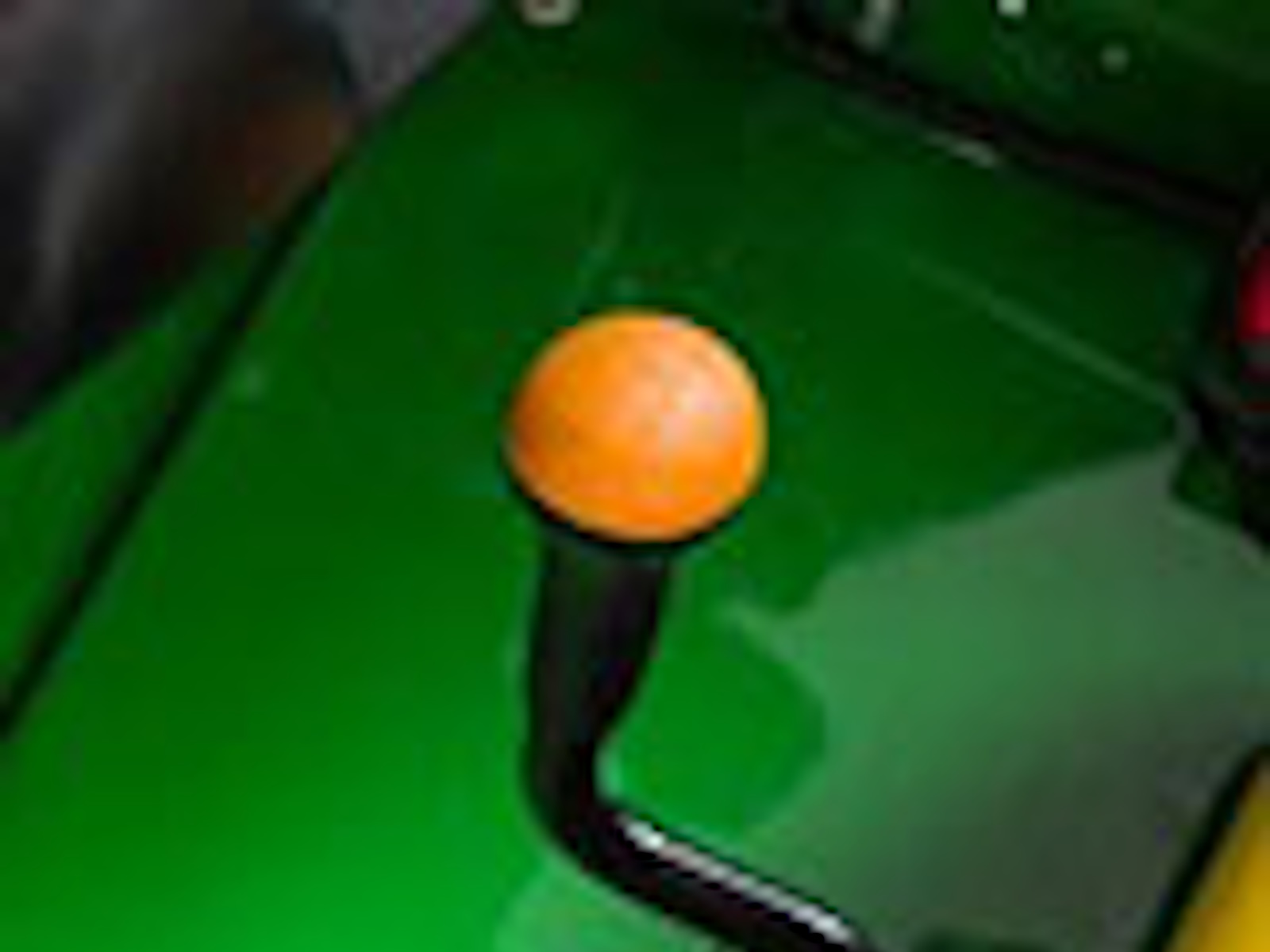

• Platform-mounted shift levers (four ranges, four gears)
  • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
  • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two

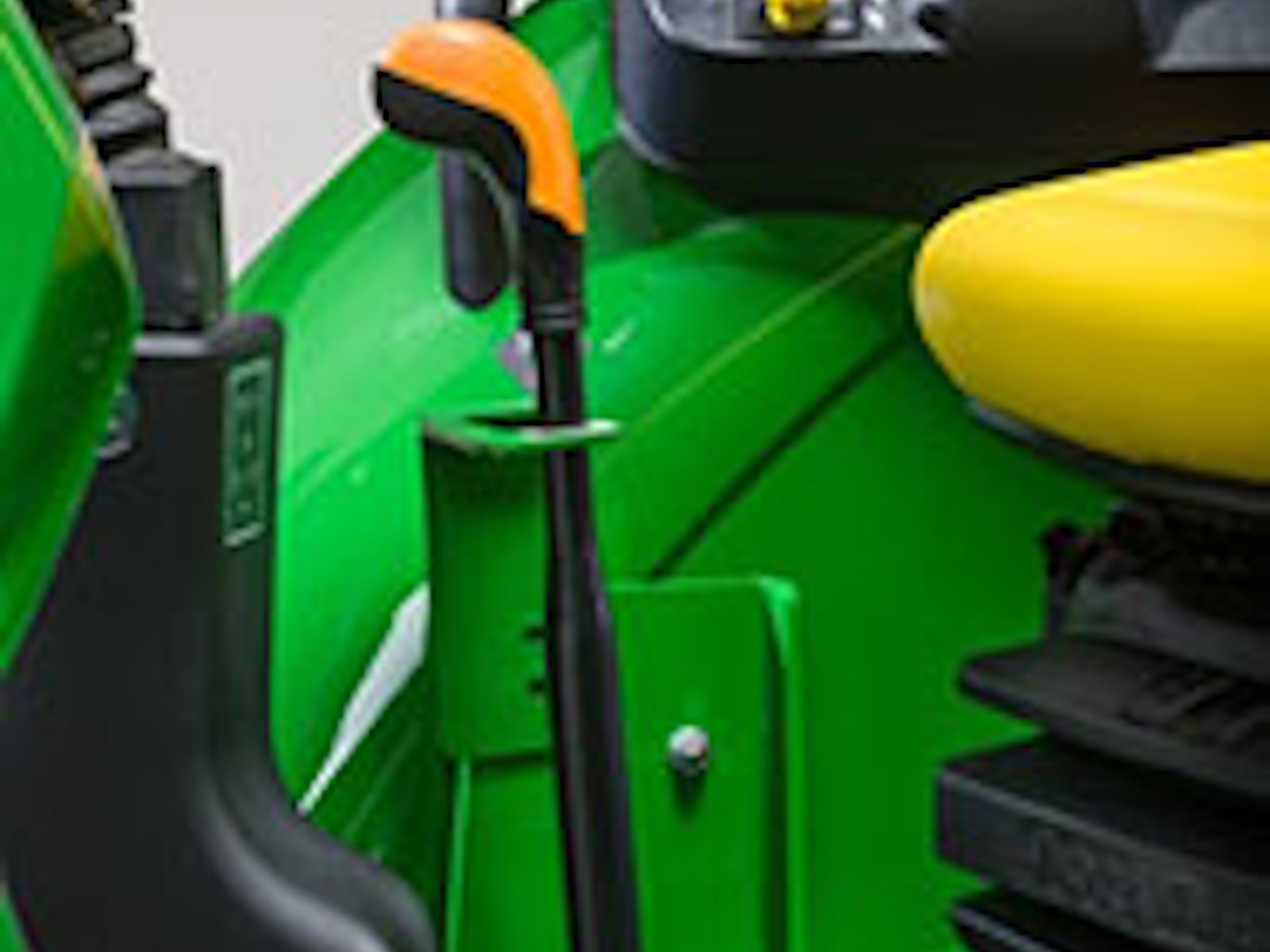

• Left-hand reverser
  • The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
• Constant-mesh helical-cut gears
  • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
  • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
• Pressure-lubricated top shaft
• Positive park pawl: provides positive park and eliminates the need for a hand brake
• Neutral start switch

The forward lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized. When upshifting, operators can move between ranges without stopping the tractor providing convenience for on-the-go shifting from field to transport.

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

• The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

See the PTO functional area for more information on E-PTO.

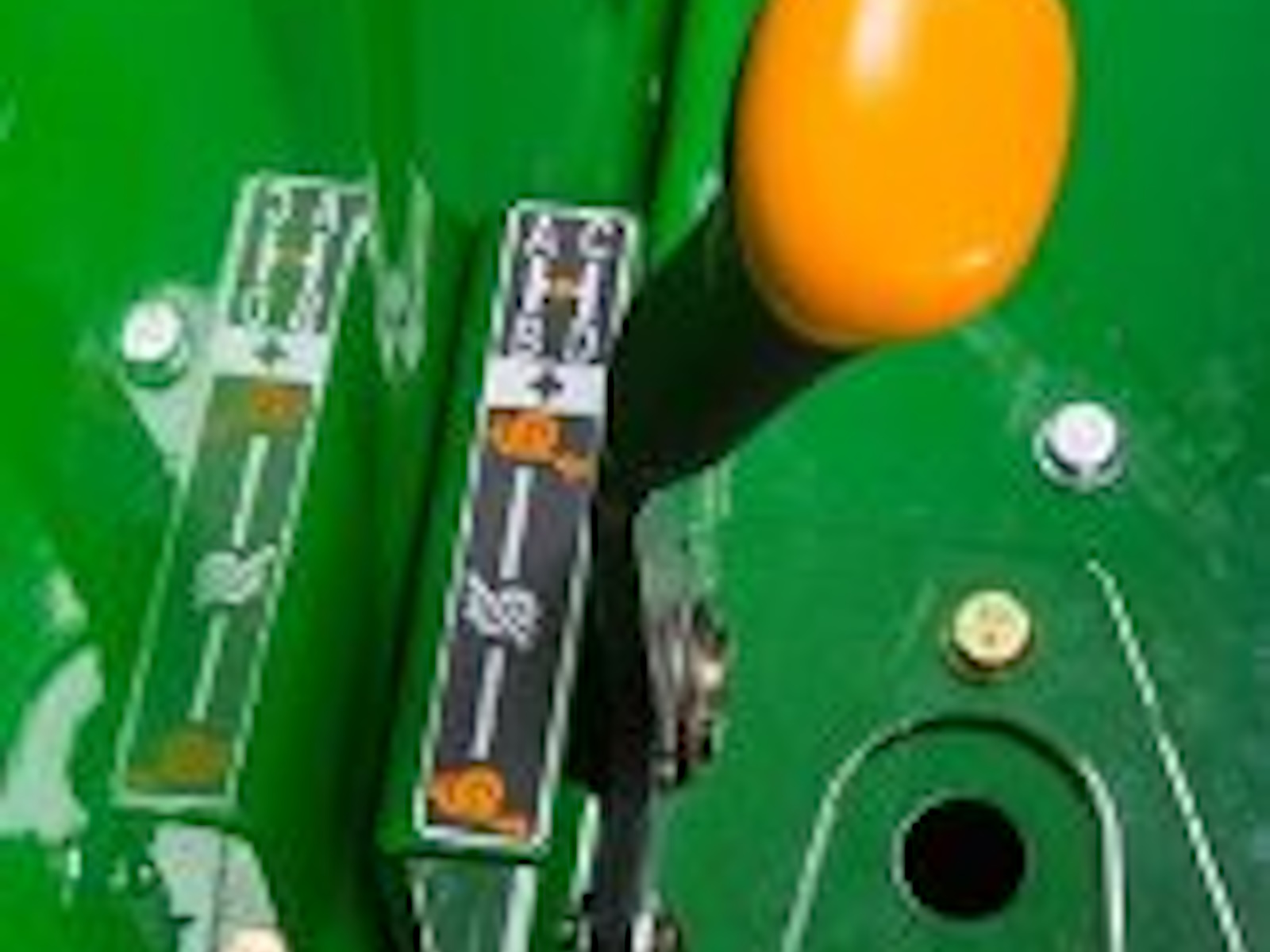

• The creeper gears are accessible by engaging the creeper lever into rabbit or turtle position. This provides 2 additional slow working ranges perfect for bedded crops.

PowrReverser™ 16F/16R transmission

Overview

• For operators requiring more field speeds to achieve the most precise operating ranges, as well as for quickly moving from task to task with transport speeds of up to 40.23 km/h (25 mph), the PowrReverser™ Hi-Lo 32F/16R transmission is the ideal choice. This transmission provides 32F/16R speeds for the ultimate in speed selection.

Benefits

• Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
  • Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
  • The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions
• Clutch-less hydraulic shifting between forward and reverse

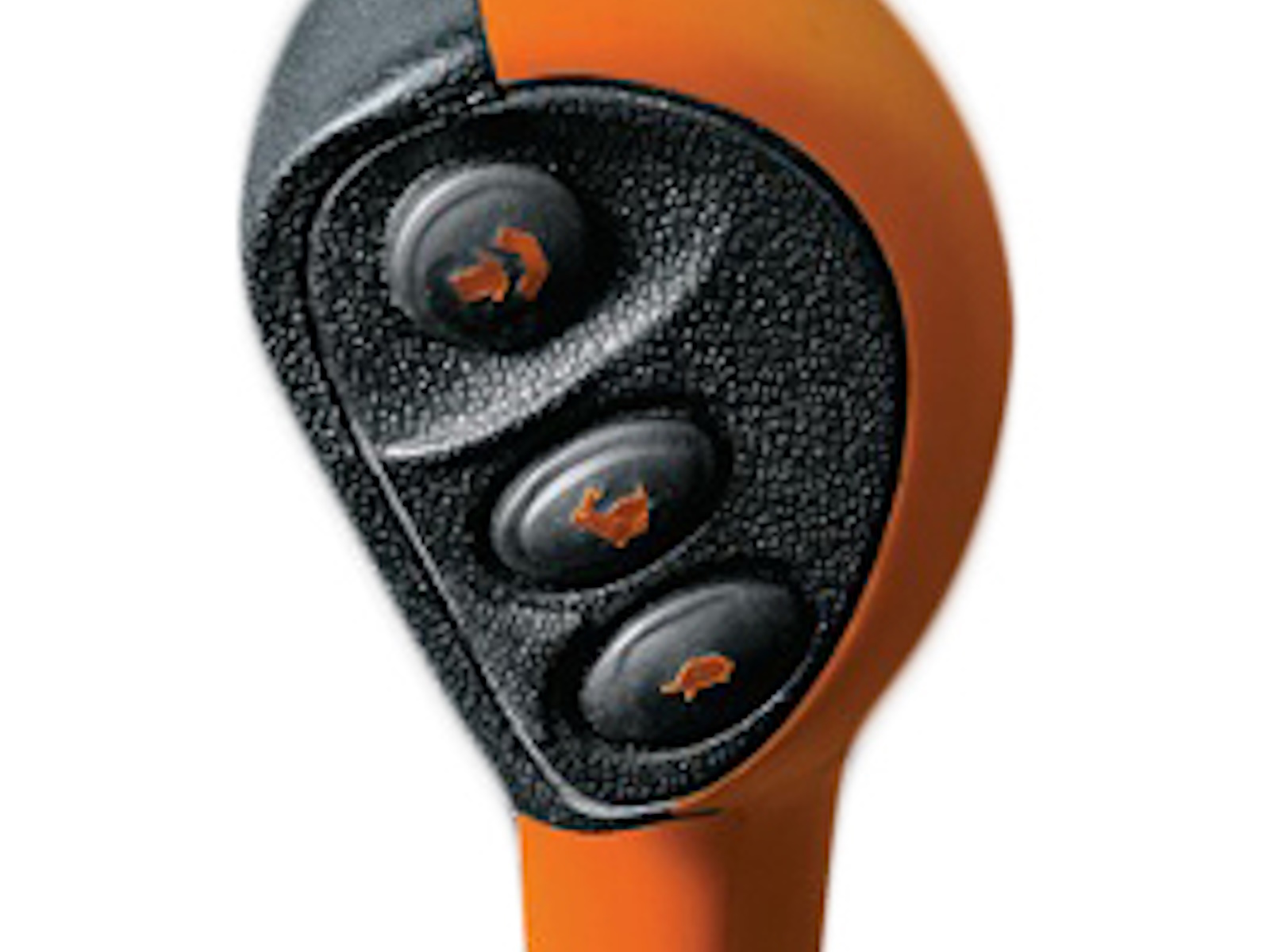

• Convenient push-button controls actuate the electrohydraulic hi-lo selector providing an extra 20% increase/decrease in speed for each forward gear
• Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

32F/16R transmission includes:

• Hydraulic wet clutches (forward and reverse)
  • Maximize durability and outlast the life of any dry clutch
  • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs

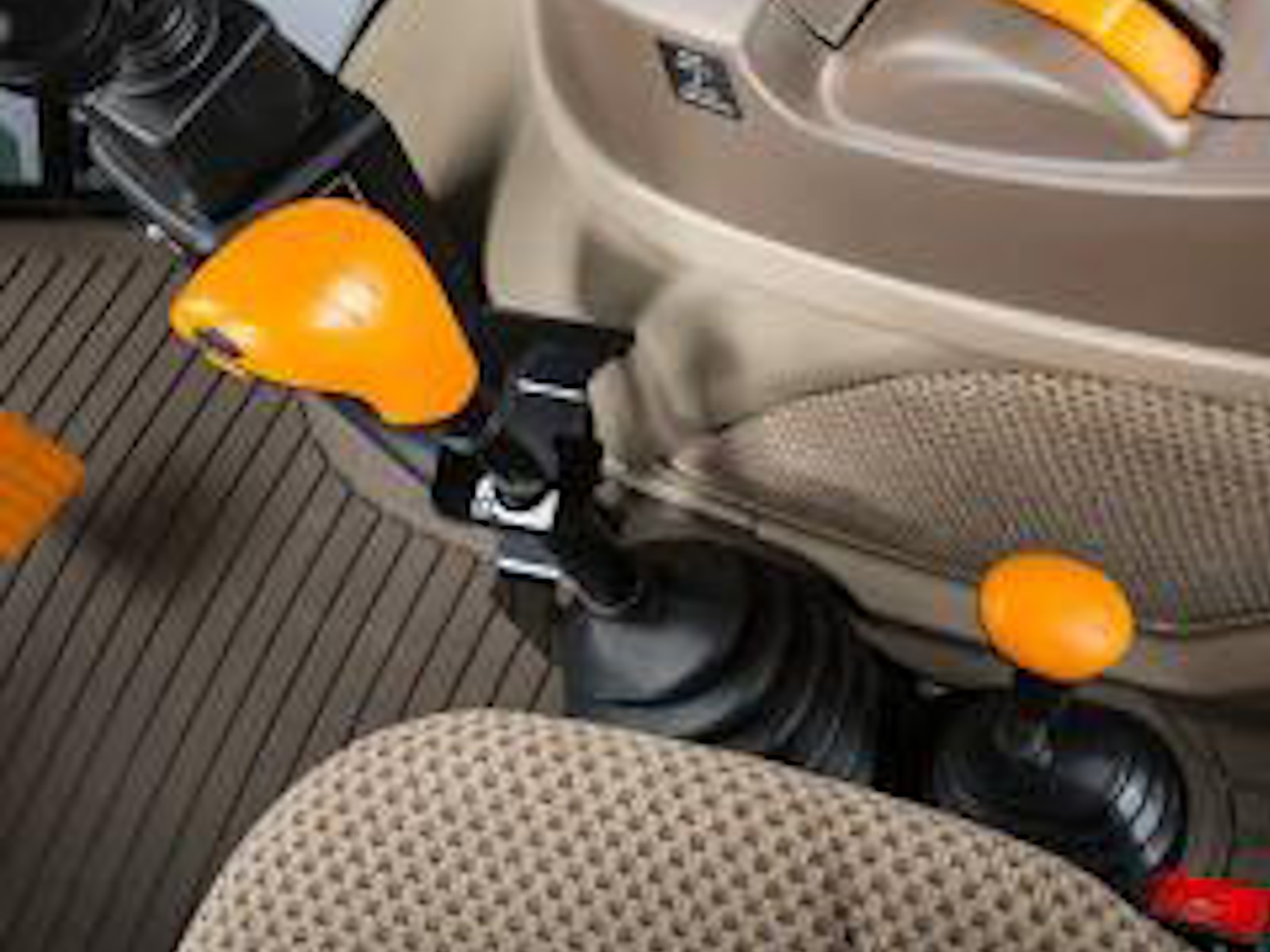

• Platform-mounted shift levers (four gears, four ranges)
  • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
  • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
• Left-hand reverser
• Constant-mesh helical-cut gears
  • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
  • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
• Pressure-lubricated top shaft
• Positive park pawl: provides positive park and eliminates the need for a hand brake
• Neutral start switch



• The gear lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. This same lever is where the hi-lo control buttons are located which provide a single shift up/down in speed within each forward range. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized which means, when shifting, operators can move between any range A-D without stopping the tractor.
• The hi-lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work such as baling in variable sized windrows. Customers can push the rabbit button (high) without having to depress the clutch to get a 20 percent increase in speed. They can also push the turtle button (low) to get a 20 percent decrease in speed, similar to downshifting or engine braking without having to grab another gear.

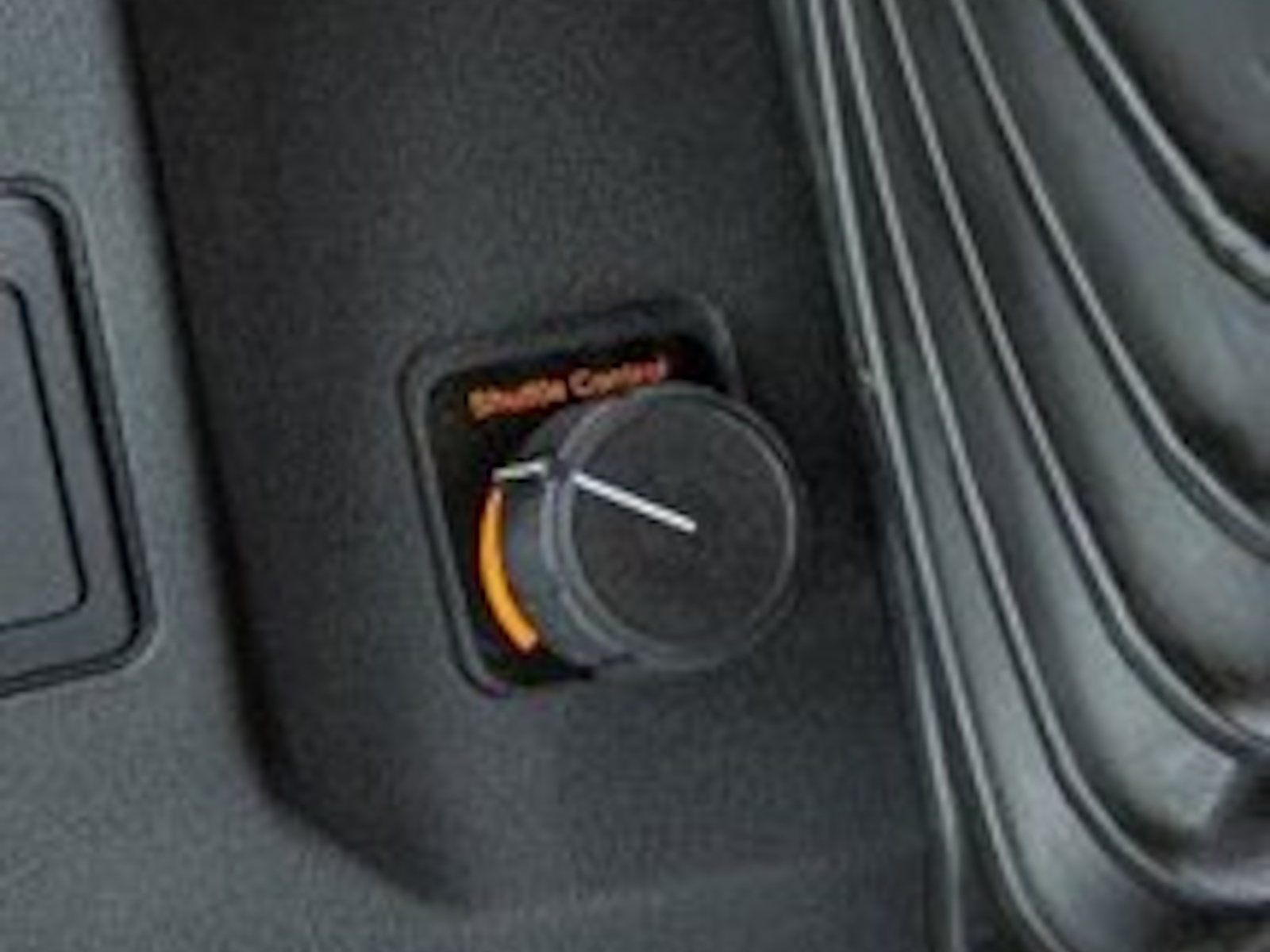

• The 32F/16R transmission includes the infinitely variable shuttle control feature allowing fine-tuning of the speed of directional changes to the operator's preference or application demands. This dial adjusts the aggressiveness of the tractor’s directional change. Some prefer a quicker more precise change, whereas other operators are more comfortable with a slow roll out before moving in the opposite direction. This feature can be significant for precision work with pallet forks or changing to bale stacking applications.
• The PowrReverser™ has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

NOTE: See PTO detailed feature for more information on E-PTO.

Increase speed control with PowrReverser™ Hi-Lo 32F/16R transmission

Overview

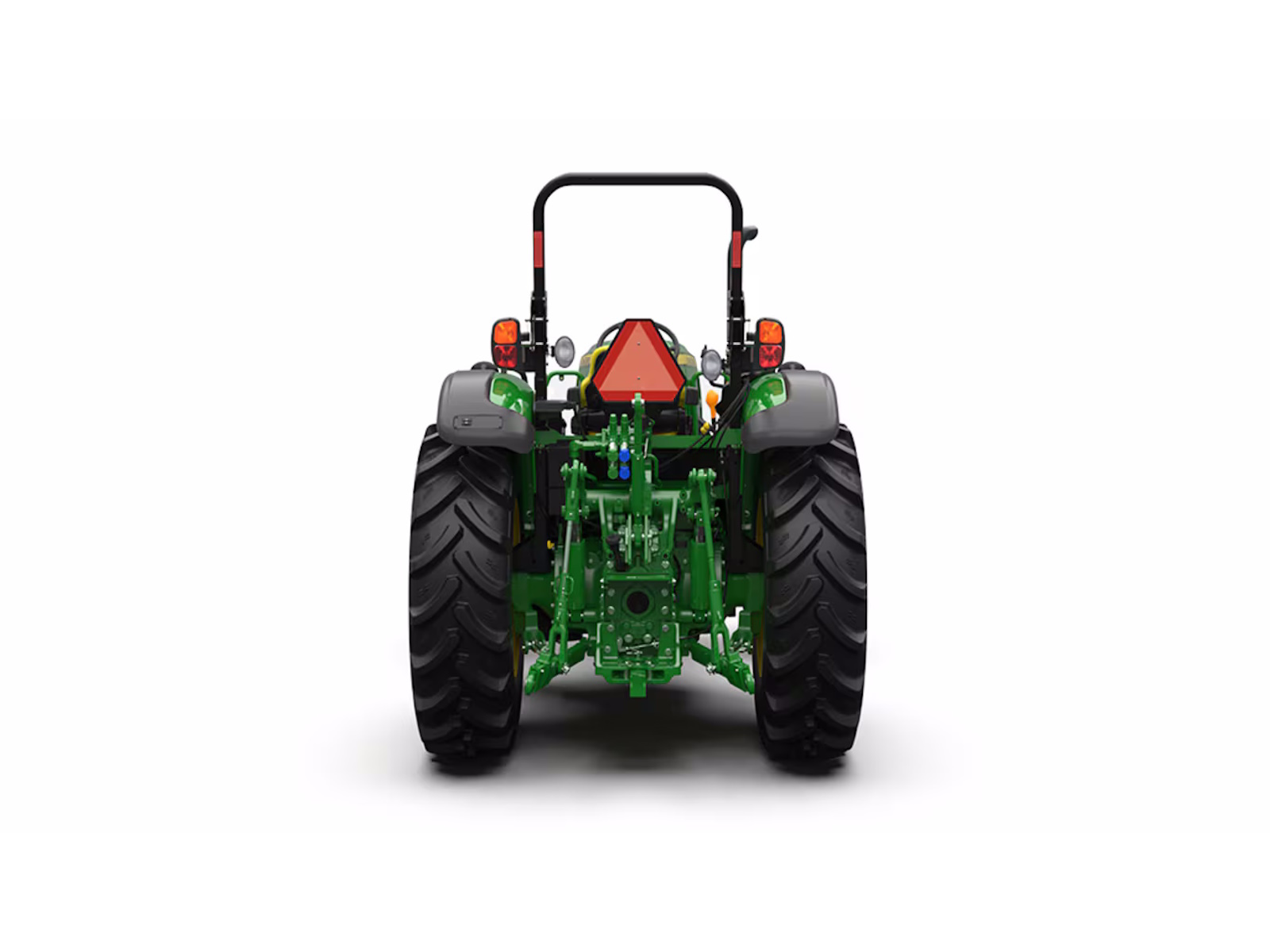

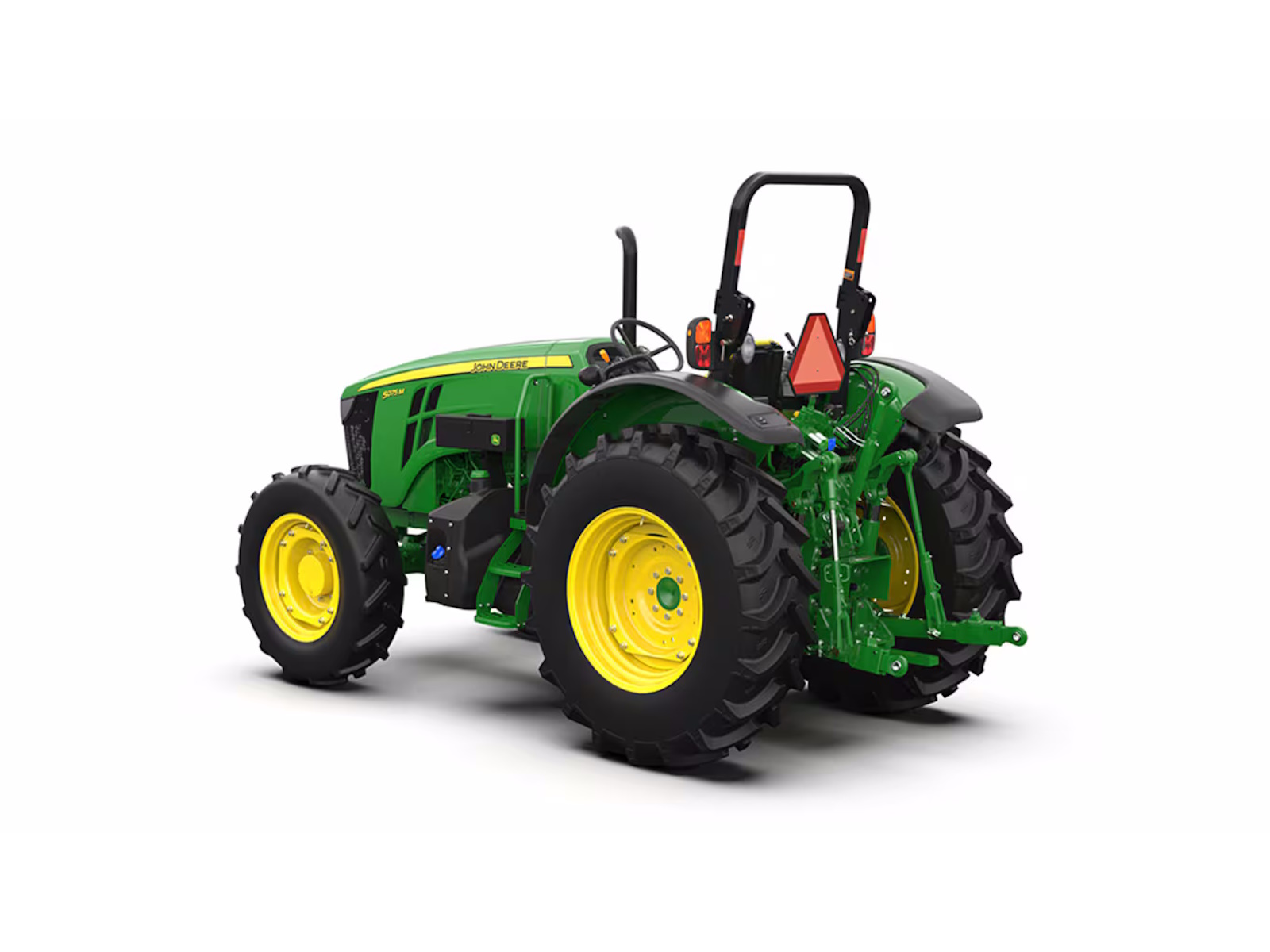

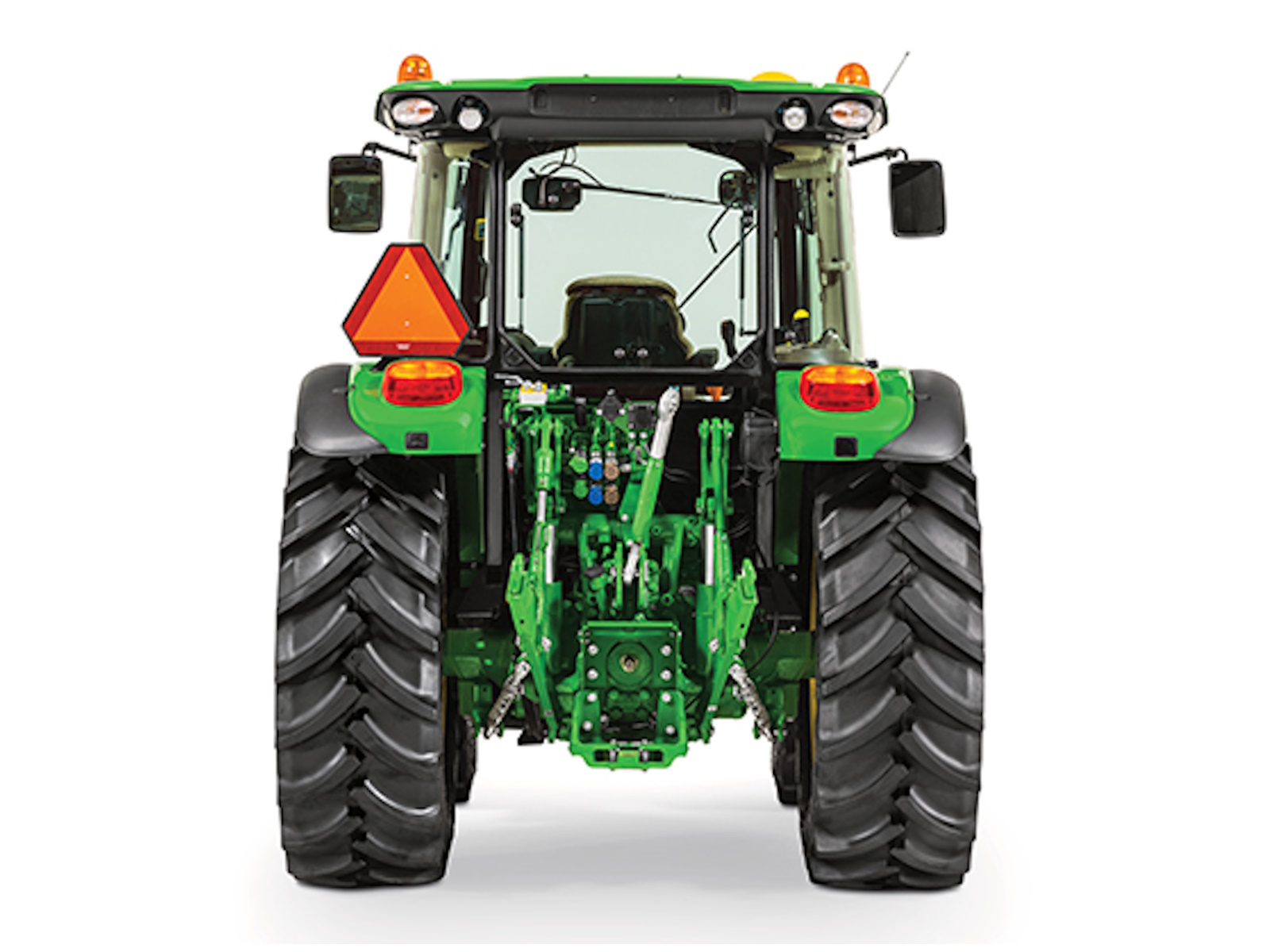

• Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.

Benefits

• Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
• Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls - each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
• Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
• Convenience when leveling implements with right lift link being able to adjust without tools - lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour

Additional details

Mechanical or electrohydraulic hitch control operation

• Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
• The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.
• The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.
• The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.

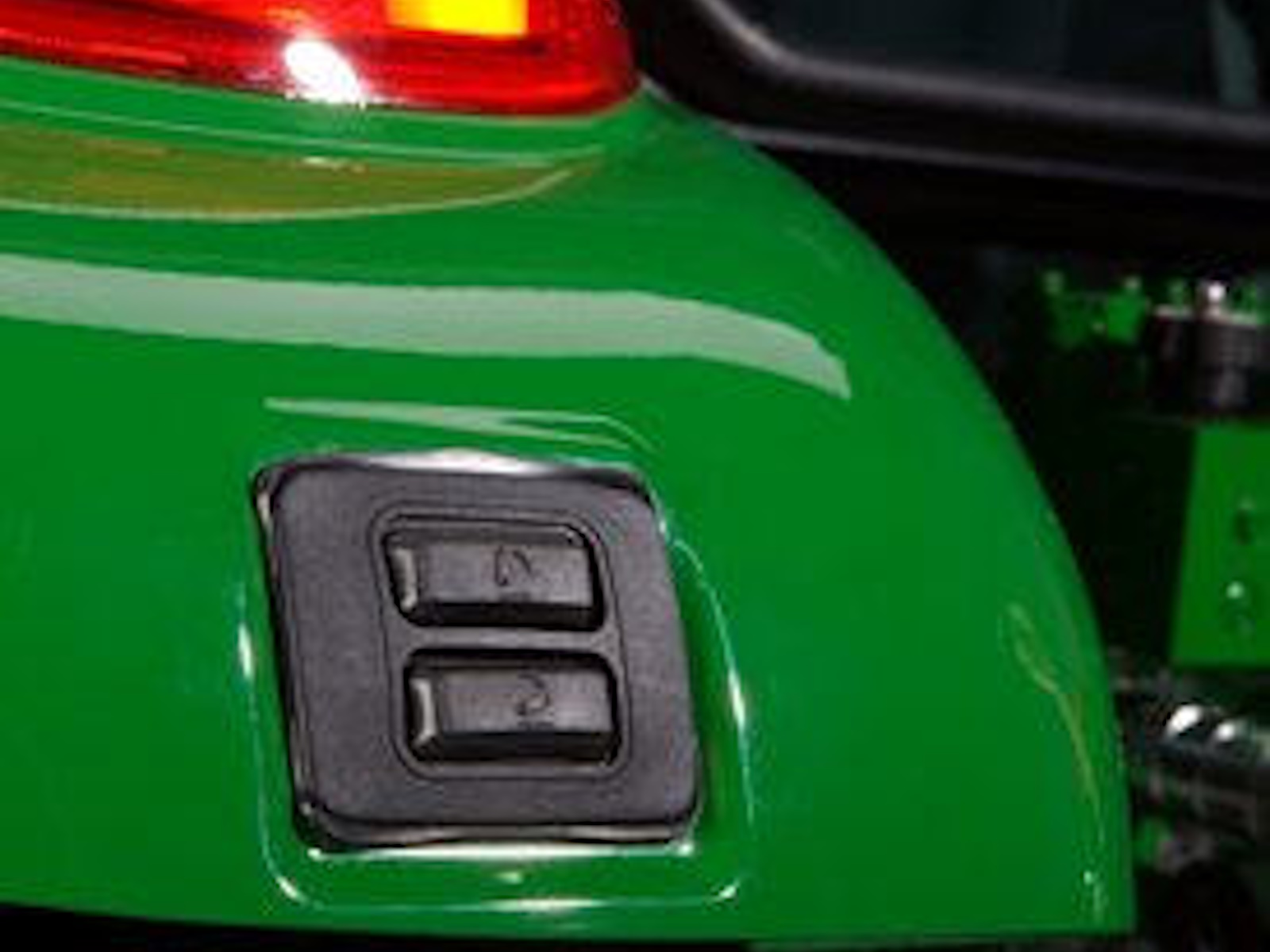

• Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.

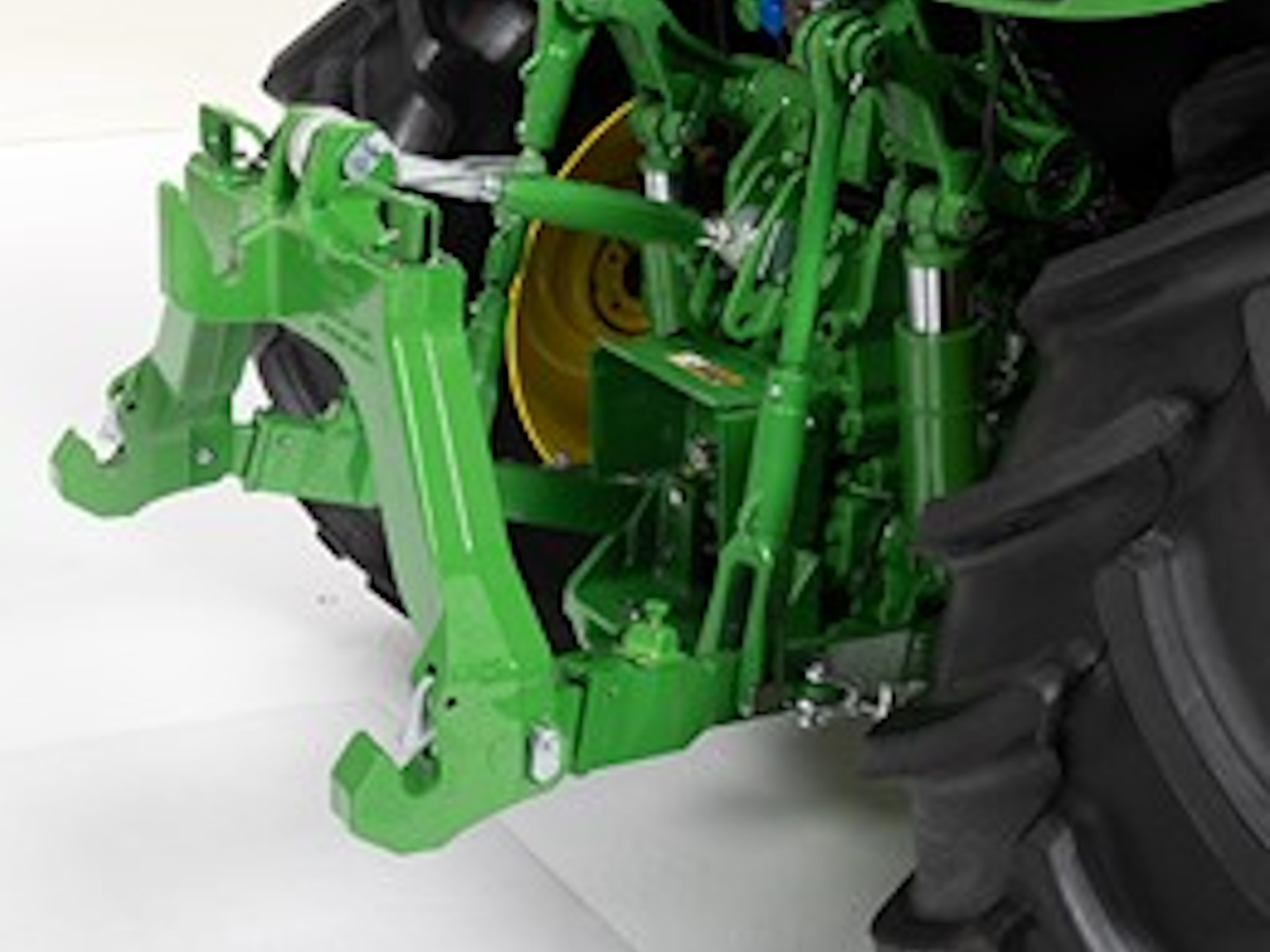

An updated three-point quick hitch is offered on the 5M Tractors.

• This updated design is a break from the existing welded quick hitch as the frame is cast.
• The curved design eliminates the potential for contact with the rear fender and extensions.
• The quick hitch is available as a field kit option.

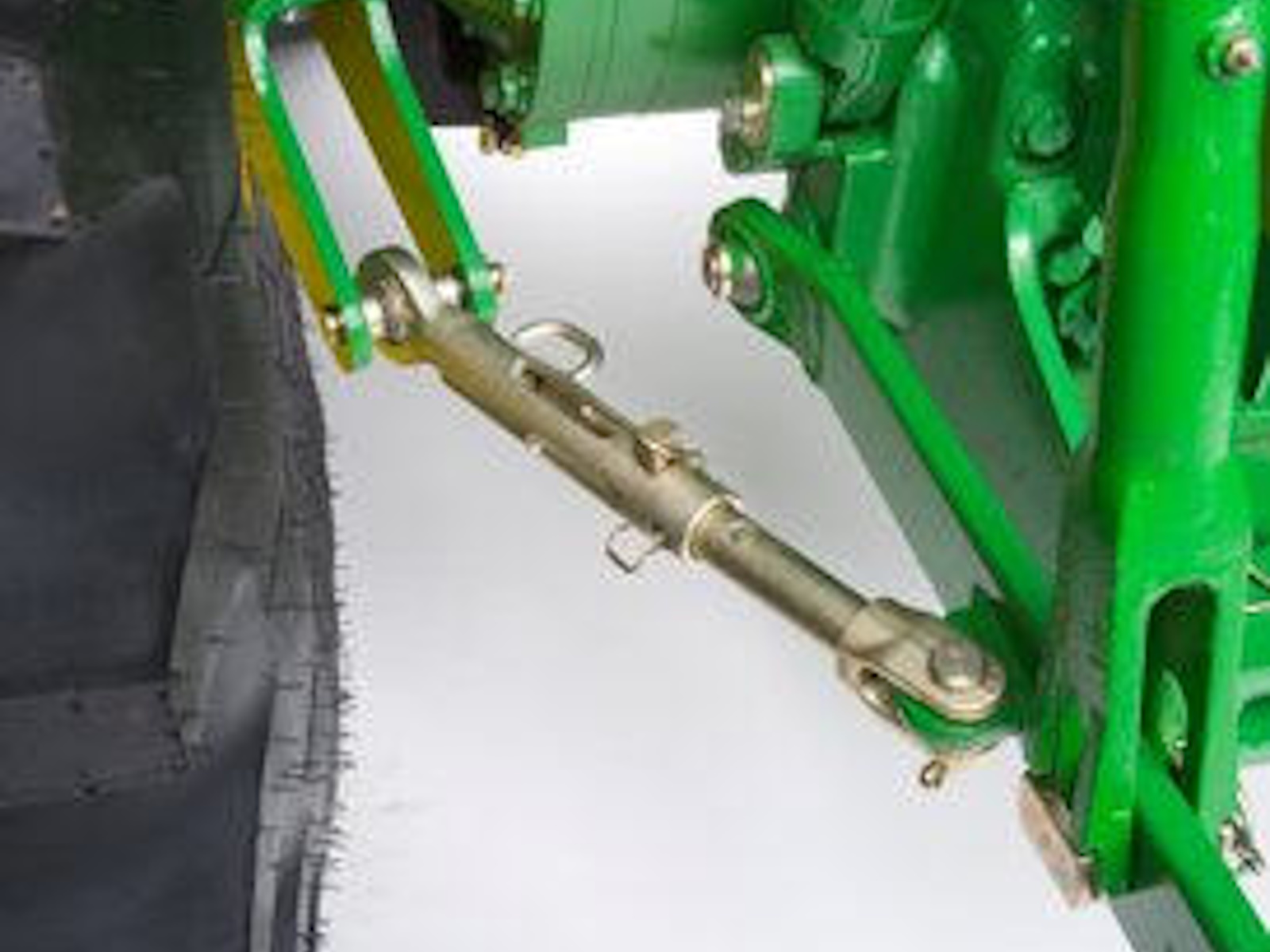

Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.

Heavy-duty 3-point hitch lift capacity for implement versatility

• The engine powering the 5075M is EPA certified Tier Level 4. This is achieved through a combination of a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF).  John Deere uses the most efficient solution for the tractor package to meet emissions requirements at each horsepower level. The system always defaults to passive regeneration mode, and will only go into an active regeneration cycle when necessary without impacting engine performance. This active cycle takes place on average about every 40 hours of normal tractor operation. The regeneration process cleans out the DPF element.

Other key engine features and related benefits:

• Heavy-duty cylinder block – strength and rigidity
• Balanced crankshaft – reduces engine vibration
• Optimized cylinder heads – improved airflow, better fuel economy
• Low friction, high-ring pistons – cast-aluminum design
• Plasma-coated top rings – reduced drag on cylinder wall
• Wet-type cylinder liners – dissipate heat to prevent cylinder wear
• Full-pressure lubrication system – eliminates excessive heat
• Electric fuel shutoff – does not allow bypass starting

PowerTech™ diesel engine provides low-end torque

Torque reserve for powering through tough spots

• Getting the power to the ground refers to torque. Torque is a force that produces or tends to produce rotation or a twisting force. Torque represents the useable power that can be achieved. The more torque, the more lugging ability is available. More torque also equates to more load carrying capacity.

Torque

• When the tractor is under load, power bulge and torque rise work together to get through the tough spots. Horsepower and torque are mathematically related.

Benefits of torque reserve:

• Improved fuel efficiency
• Reduced noise levels
• Less downshifting
• Increased productivity
• Efficient throttle response
