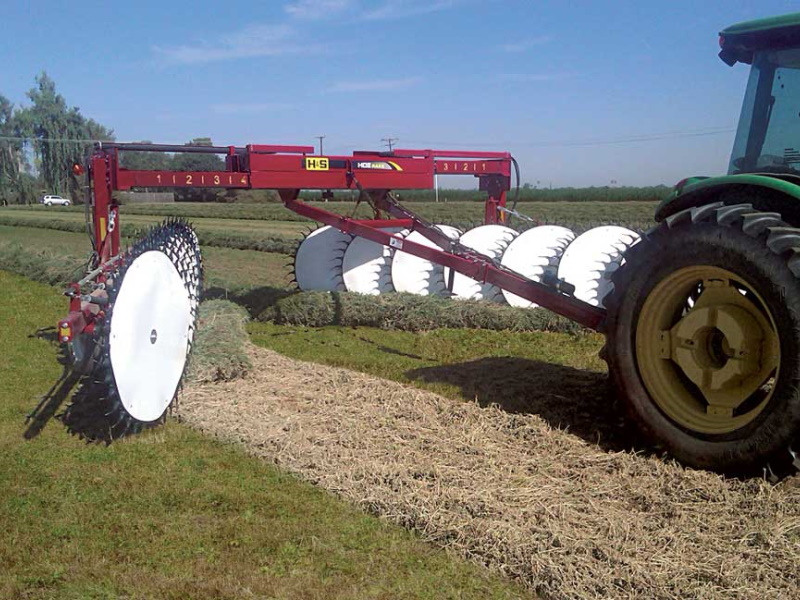

2023 H&S Manufacturing Company, Inc. 8100 Series HDII Rakes 20 Wheels

Features may include:

• 5″ x 7″ Overhead Mainframe
• Each side opens independently.
• The windrow width on the HDII can be adjusted hydraulically to a maximum of 72″.
• One hydraulic remote along with the electrical control box, controls all the functions of the rake.
• Because of the offset of the rake wheel beams, there is no need for center kicker wheels.
• Rake wheel ground pressure can be adjusted by the threaded rod and nut on the end of the lifting pipes on each rake beam.
• The 60″ rake wheels on the HDII rake feature UV treated poly wind panels and an over center wheel stop.
• Torsional dampening springs allow the rake wheels to roll smoothly over the terrain.
• The rake wheel lift pipes slide in oil impregnated bronze bushings and also feature a rake wheel lock for transportation.
• The HDII rake features rake beams with a variable adjustment to set the rake wheels straight or in a tilted setting up to 10 degrees. (patented)
• Anti-wrap hay guards are standard equipment.
• The rake wheels may be lifted independently left or right or both at the same time with the master switch.
• An adjustable hitch and jack are standard equipment.
