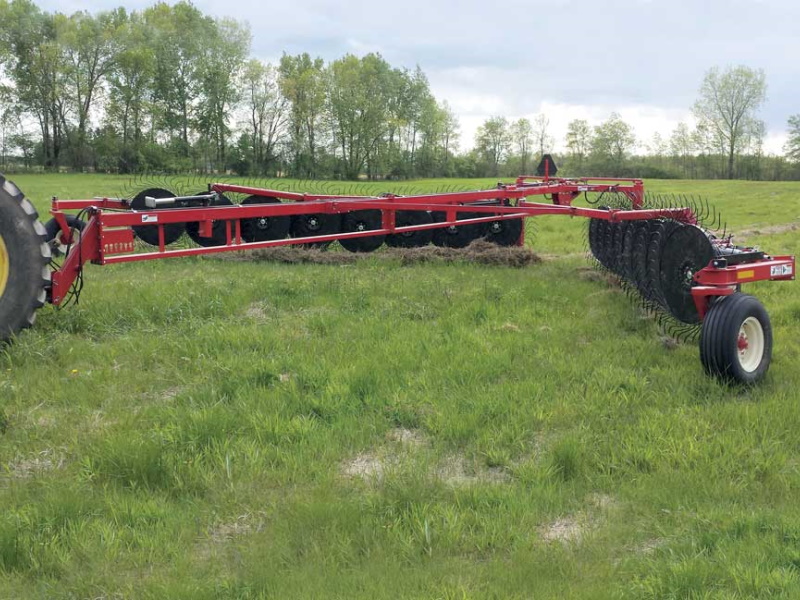

2023 H&S Manufacturing Company, Inc. 6100 Series Flex-Frame Rakes 6116

Features may include:

• H&S Flex-Frame wheel rakes are available in 16, 18, 20, and 22 wheel models.
• The raking wheels are positioned ahead of the rake arms, main frame beams and transport wheels. coupled with a high and wide end of frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
• The rake beams and rake arms feature flex-joints for maximum flexibility over the terrain.
• A brake band on each front gauge wheels can be easily adjusted to field conditions.
• Large independent 60″ rake wheels with “Bee Hive” style spring suspension follow the contours of the ground smoothly.
• A large diameter rake wheel hub is used for added strength to the rake wheel dish.
• The adjustment for the ground pressure on the rake wheels allows the operator to fine tune the Flex-Frame wheel rakes to fit varying conditions.
• The rake arms feature 2 ball bearings on each end of the arm for long life, smooth operation, and less wear than rakes with bushings.
• The 60″ diameter rake wheels turn slower for less tooth wear and deliver more capacity.
• Windrow width adjustment is made by a ratchet jack. A Hydraulic Rear Windrow Width Adjustment is Optional.
• Each rake beams articulates and flexes independently.
• Raking widths can be hydraulically adjusted in any position up to the pre-determined raking width. Setting the spring loaded stop allows you to set a pre-determined raking width.
• Rake wheel wind boards are standard on the Flex-Frame Rakes.
