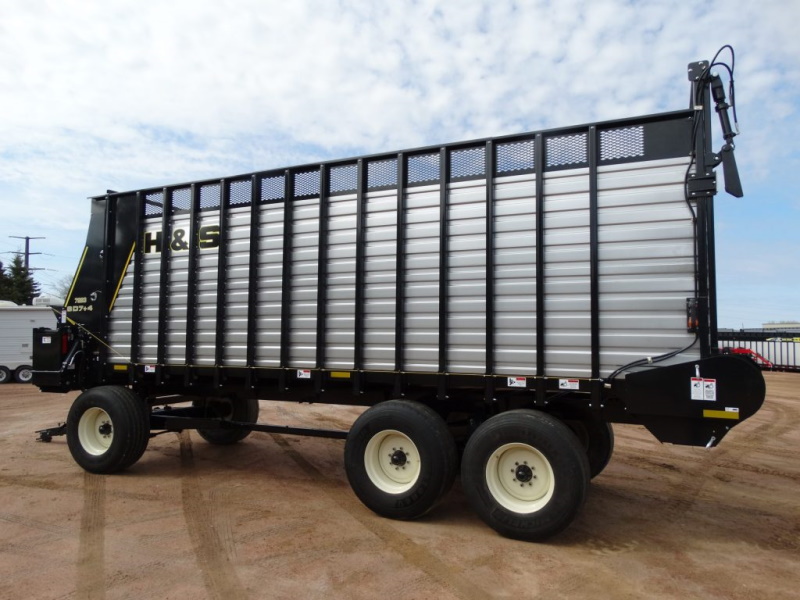

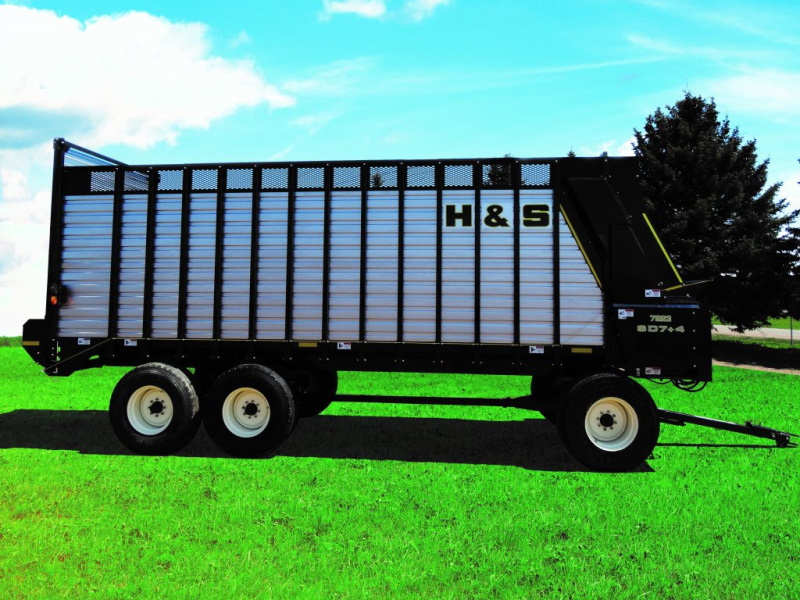

2023 H&S Manufacturing Company, Inc. 7200 Series Super Duty 7227

Features may include:

• The 7200 Series Forage Boxes are available in 23’, 25’ & 27’ models with front & rear unload systems.
• The Electric-Over-Hydraulic “Super Duty” features Hydraulic valves with a variable Speed High/Low Main Apron Unload System and Control Box.
• (1) Remote is needed for the Front Unload System (Hoses included are changed when using either the front, or rear unload systems)
• (1) Remote is needed for the Rear Unload System
• The system allows you to start and clear the cross conveyor before you start the beaters or main apron conveyors.
• No Belts or Pulleys.
• H&S uses three – 18″ 4 bar H.D. spiral type beaters – not augers. Aggressive in handling tough material, they are even feeding.
• Beater shafts are 1¾″ equipped with greaseable bearings and are mounted in the head, not auxiliary panels in the box.
• 7200 Series Forage Box frames feature heavy 5″ channel cross members and 2.5″ x 2.5″ side stakes.
• On the rear unload system, once the tailgate safety lock is released, the self-locking mechanism unlocks automatically while unloading and locks shut when the tailgate closes.
• A 24″ Hydraulic-Fold Extend/Retract Cross-Conveyor Extension is standard on all 7200 Series Models.
• 2″ Stress-proof Front Drive Shaft.
• 2″ Stress-proof Rear Drive Shaft. (Front & Rear Unload Models).
• Heavy Duty Gearbox System.
• Heavy Drive Chains.
• Spring Loaded Tighteners on Beaters.
• Quick Release Cross-Conveyor Clean Out Pan.
• The Rear Unload Drive System features a quick change pin.
