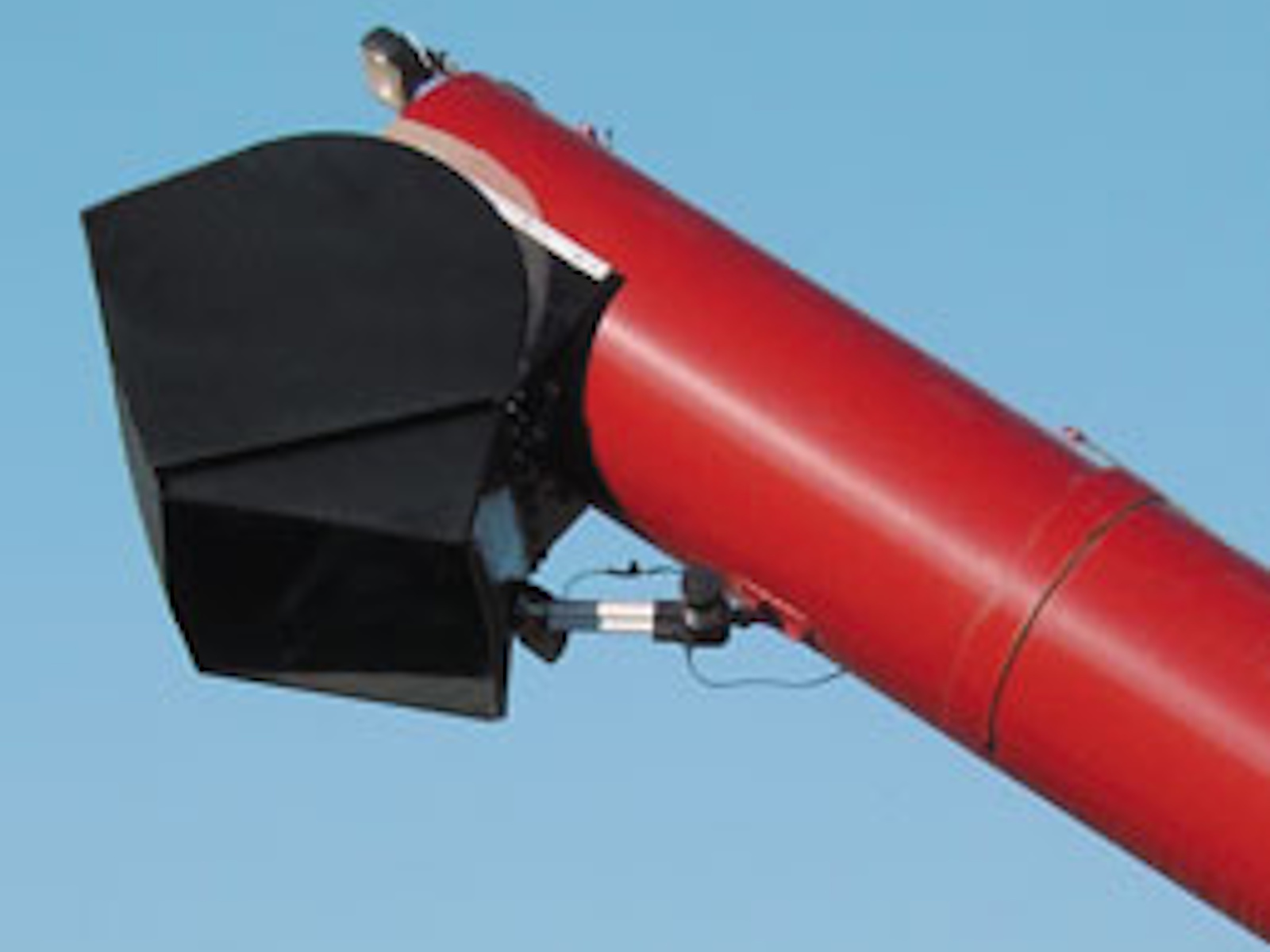

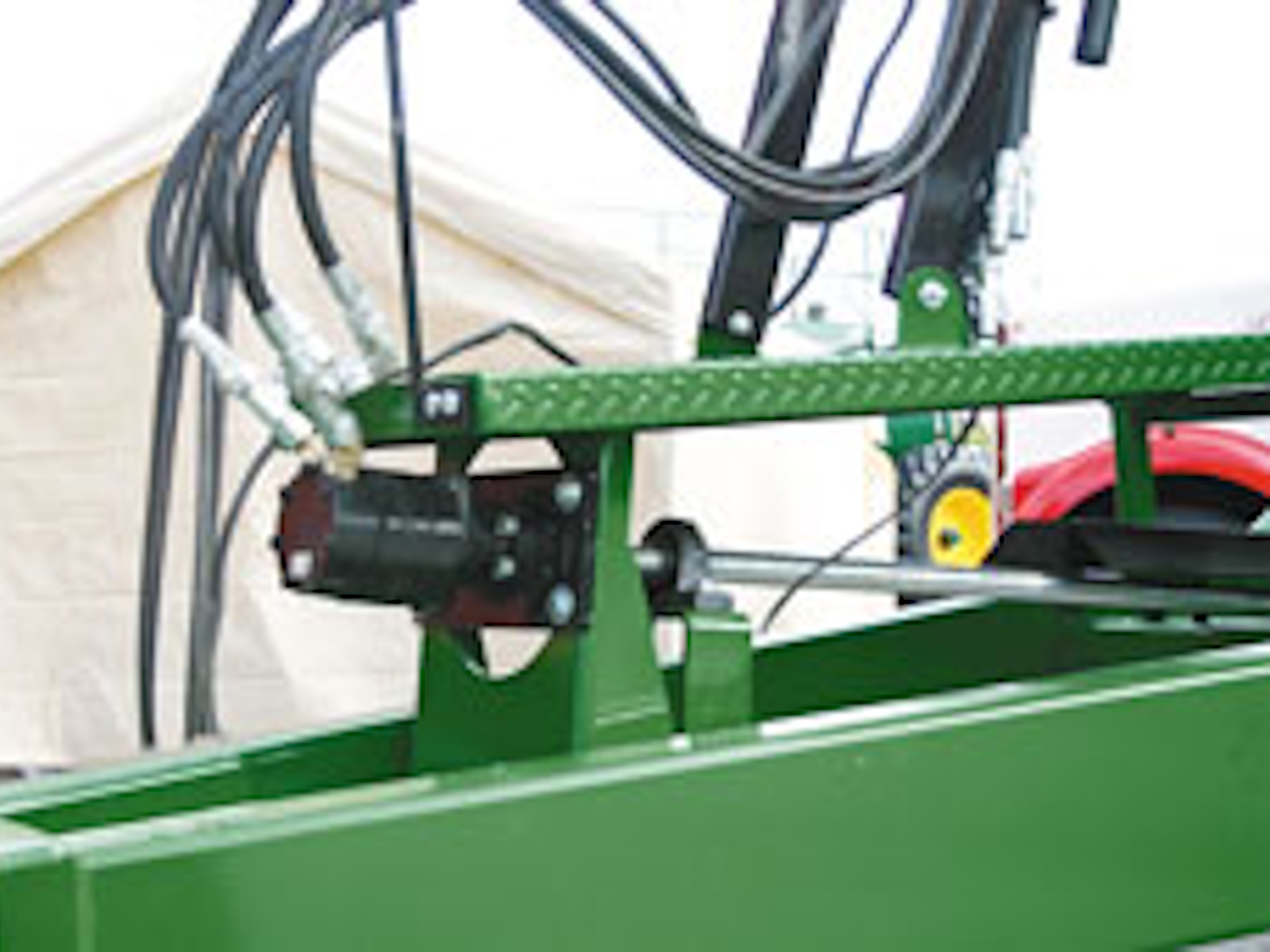

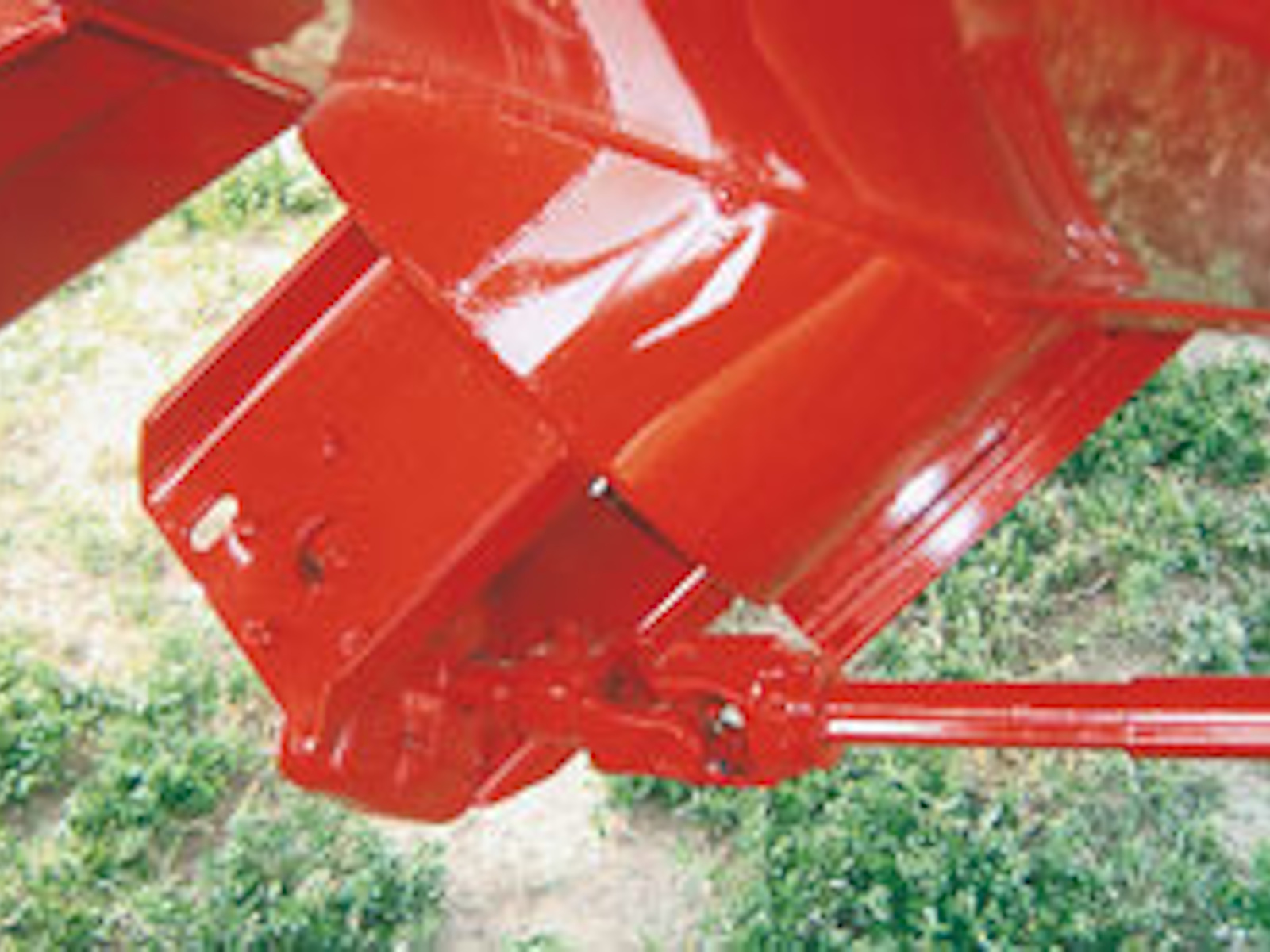

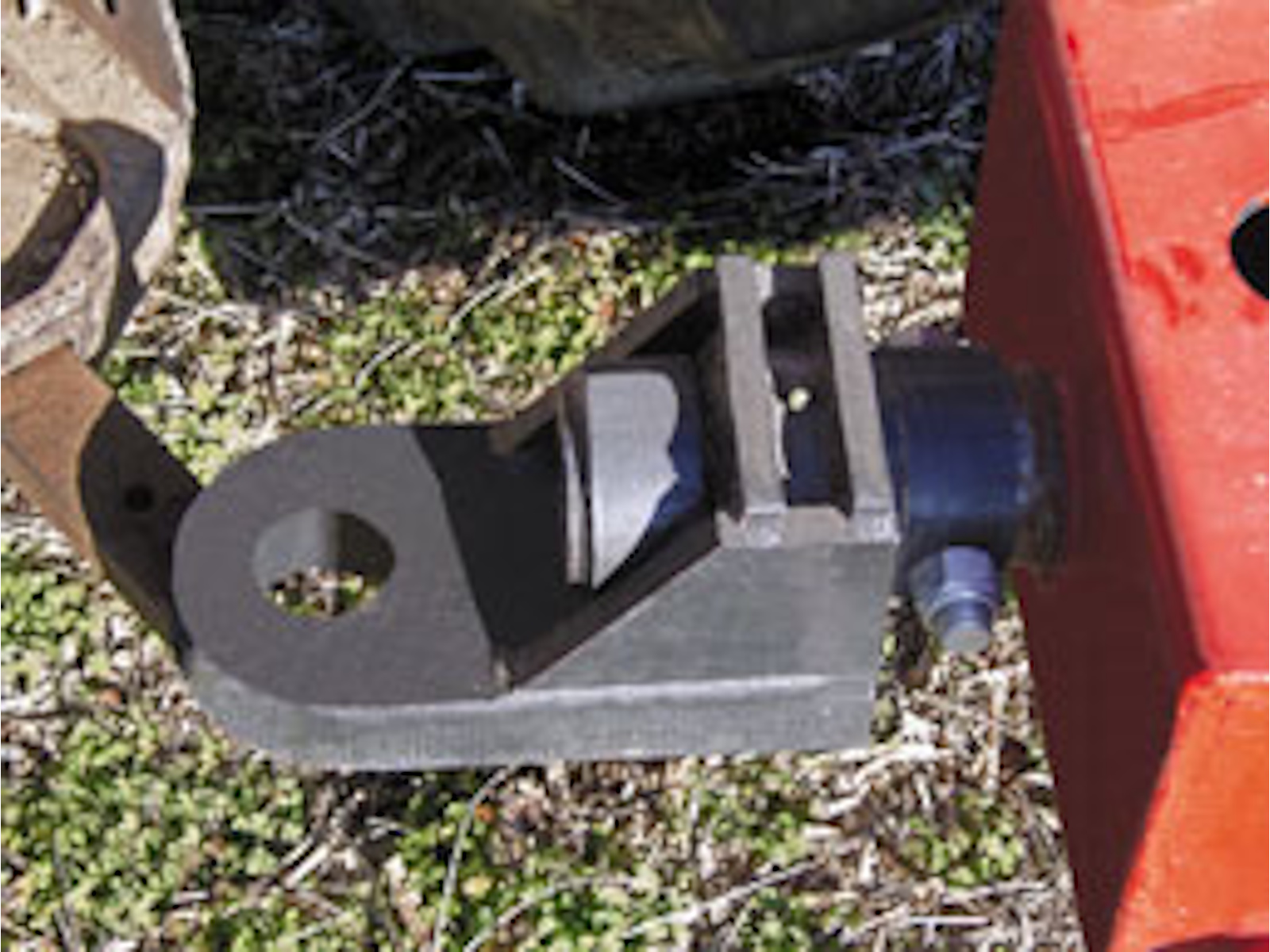

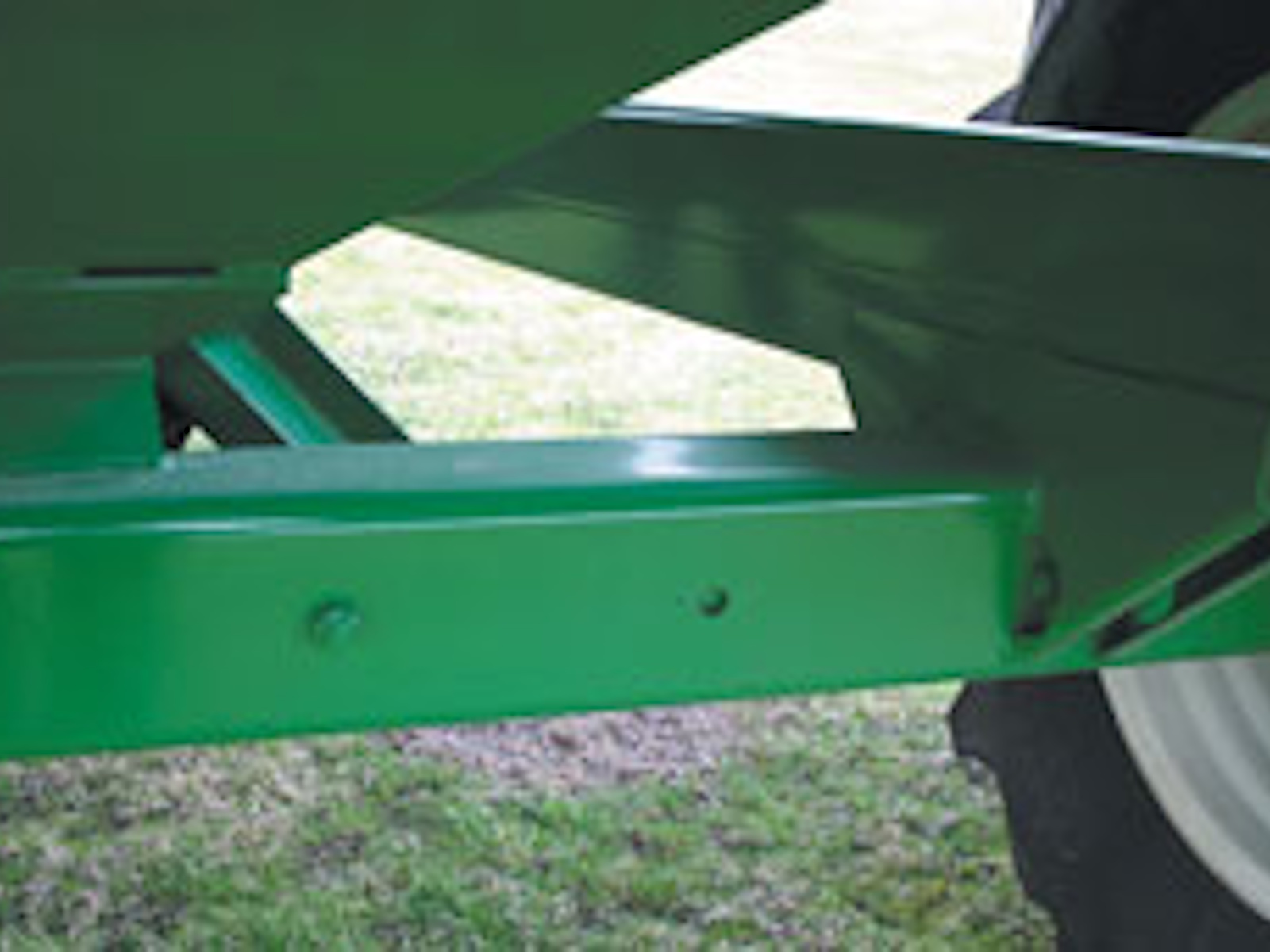

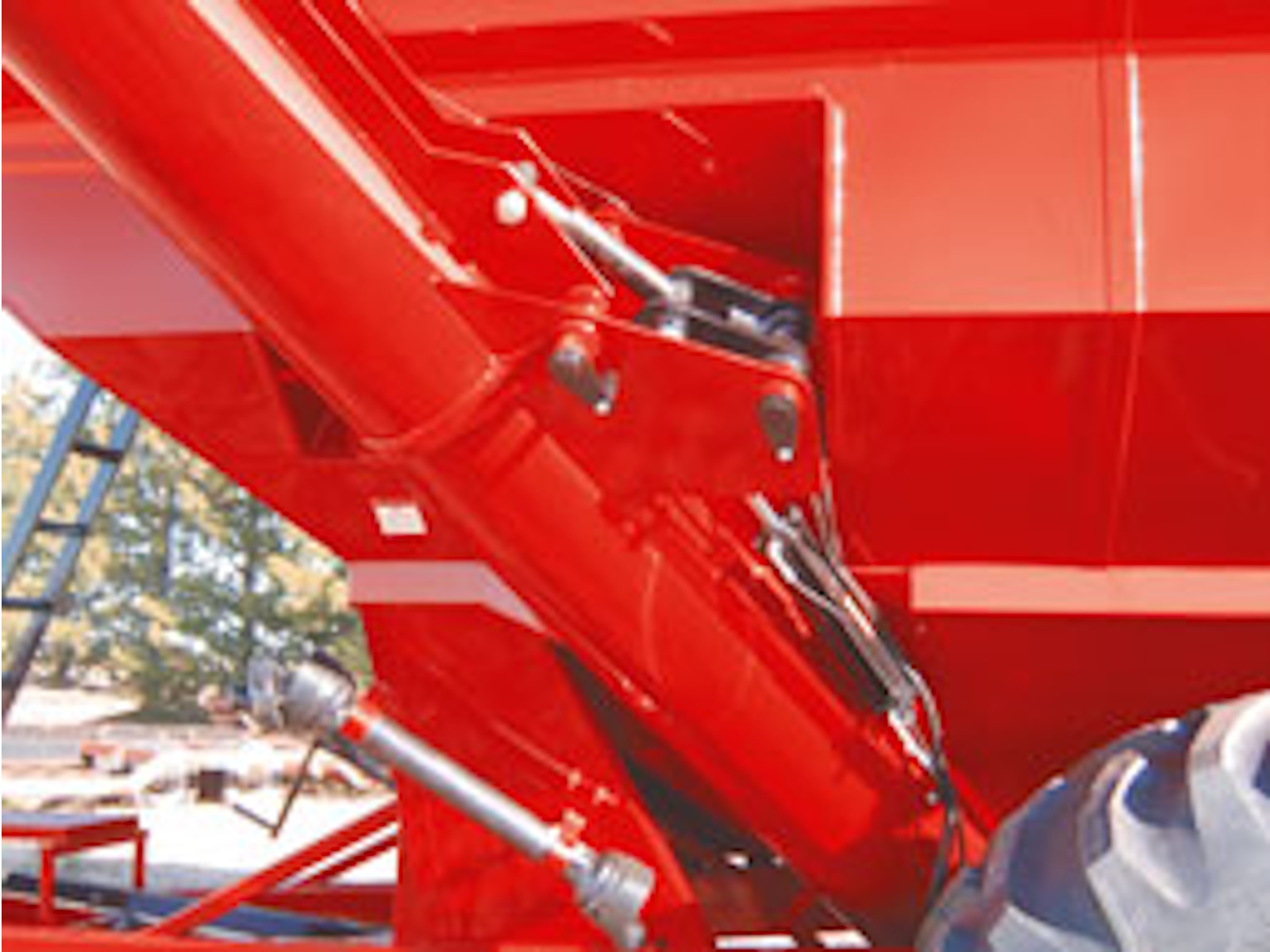

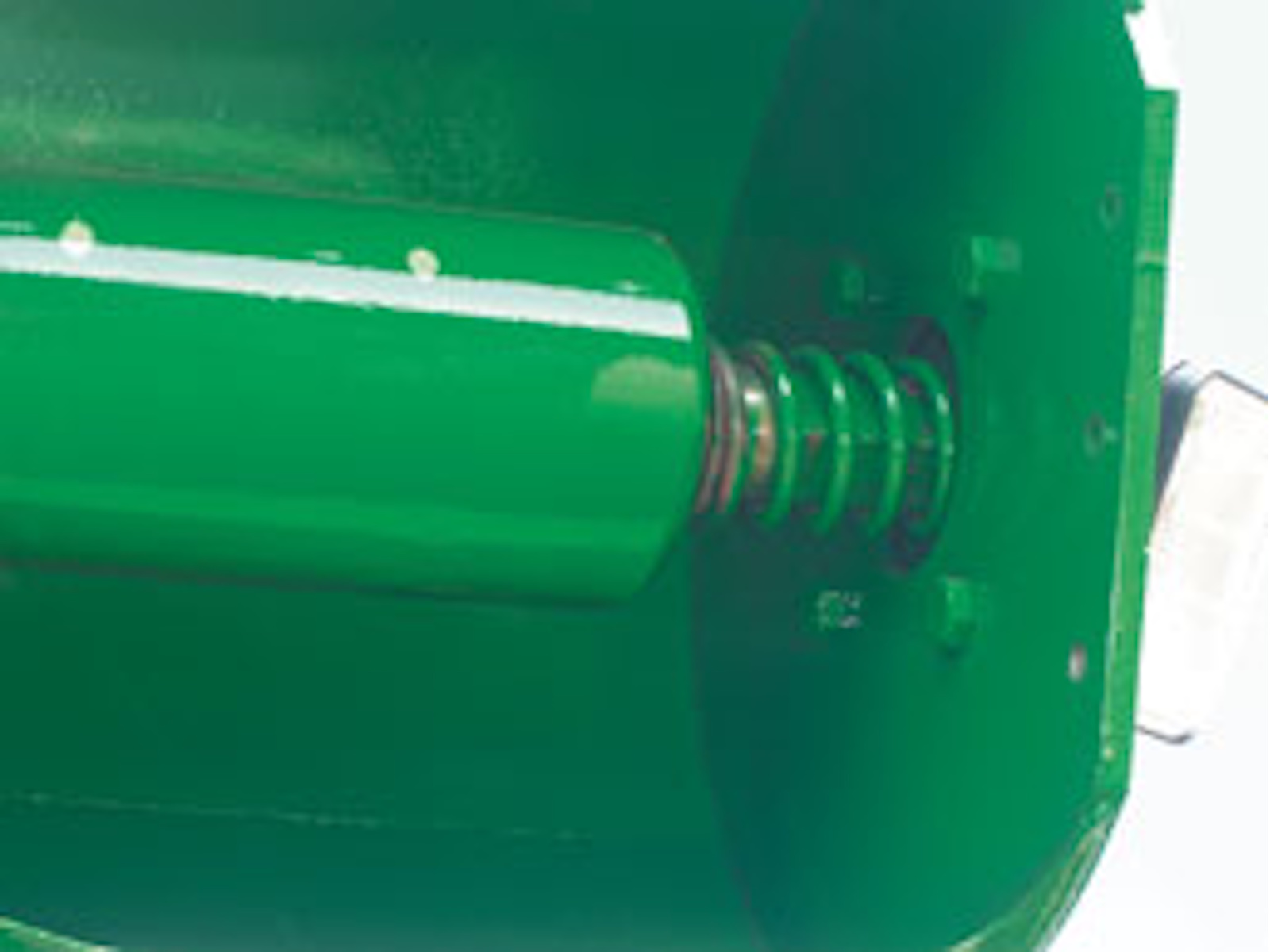

Bushel Capacity: 850 | Walterscheid PTO—13⁄4″/20 spline with combination friction/over-running clutch | Front crank operated gravity dump door for pit dumping and cleanout | Computer balanced 18″ auger with 5/16″ flighting | Front corner auger for greater driver visibility | Hydraulically operated grain shutoff with front indicator | Mechanical auger lock with positive-flange seal to prevent any grain leakage | Gearbox consists of two-piece housing, large gears and extra support bearing | Large 41/2″ diameter frame enclosed spindles and matching 881 hubs 10/13.19″ | Forged steel “perfect hitch”—convertible from spade for working to clevis for empty towing | Easy user conversion to hydraulic drive (see price on hydraulic drive option | Single auger top spring, neater, stronger and no adjusting | Bottom bearing for auger (takes the weight off gearbox | Lower drive bushing with stainless steel insert to assist removing gearbox | Split driveshaft for easier maintenance, greater clearance and durability | Heavy main frame tubing (10″x4″) | Better balanced, with less weight on tongue when loaded (approximately 4000 lbs.) | Graphite coated interior with below-hopper auger sump (completely clean unloading | Paint available in red or green | Deluxe light kit | Fully adjustable axle 120″ to 144″

R1—12 ply: 30.5×32

27×32 (10/13.19)-30.5″x32″

8,720 lbs

Height: 12′ 1″

Dumping: 10′ 4″

24″
