2024 Beaver Valley Supply Co TGC120-20

Teagle Tomahawk C120 Bale Processor | Pull Type | Round/Sq Bales | 180 HP 1-3/4″ 20-SPL 1000 PTO

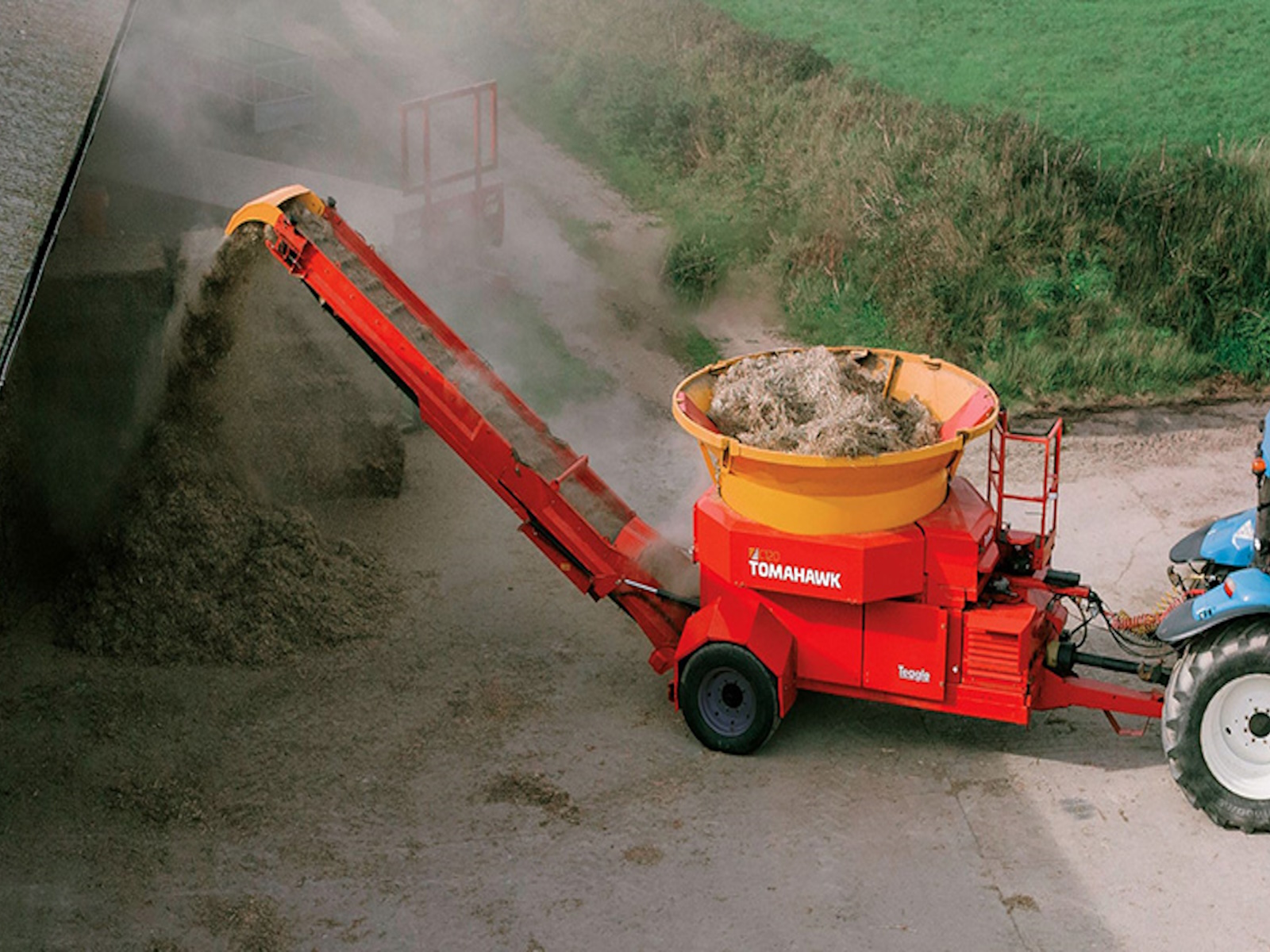

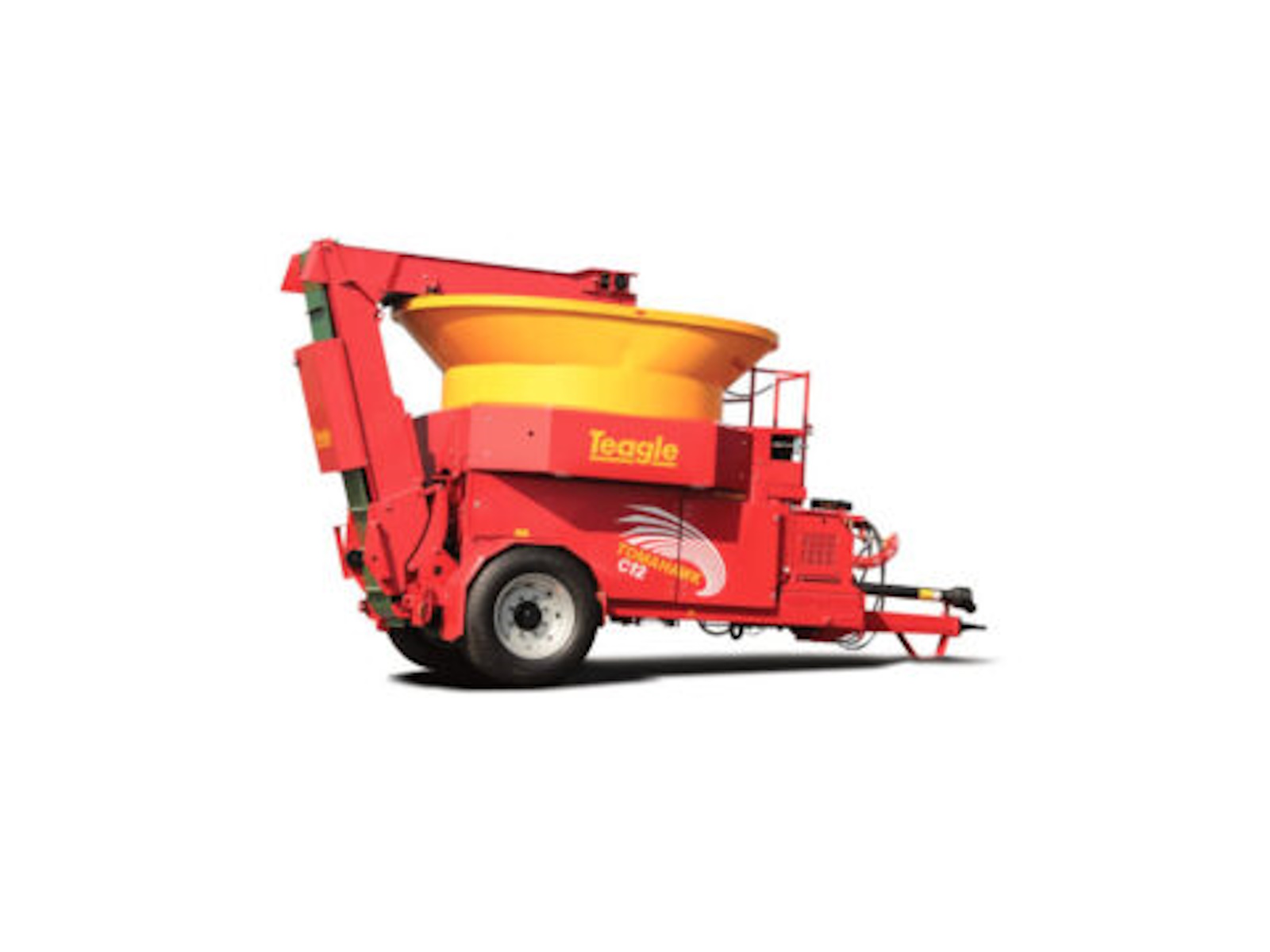

Teagle Tomahawk C120 Bale Processor

• Processes Up To 16.5 Tons Per Hour
• Pull Type Unit
• Air/Hyd Brakes
• Shear Bolt & Overrun Clutch 1000 PTO – 1-3/4″ 20 Spline
• Clevis Hitch Drawbar & Jack
• Road Lights
• Bluetooth Electric Controls
• Homologated To 25 MPH
• 180 HP Min PTO
• 12,125 lbs
• For Precision Milling Of Dry Materials Such As Straw For Livestock Feeding & Bedding
• 6.5′ Dia Round Bales | 4′ x 4′ x 8′ Rectangular Bales
• Suitable For Dry Materials < 20% Moisture Content
• 6 Screens Included With Base Price (Select Sizes When Ordering)
• Auto Greasing System
• Includes 40 Gal Of Hyd Oil
• 3/8″ – 5″ Material Output

The New Tomahawk C120 Updated Features Include

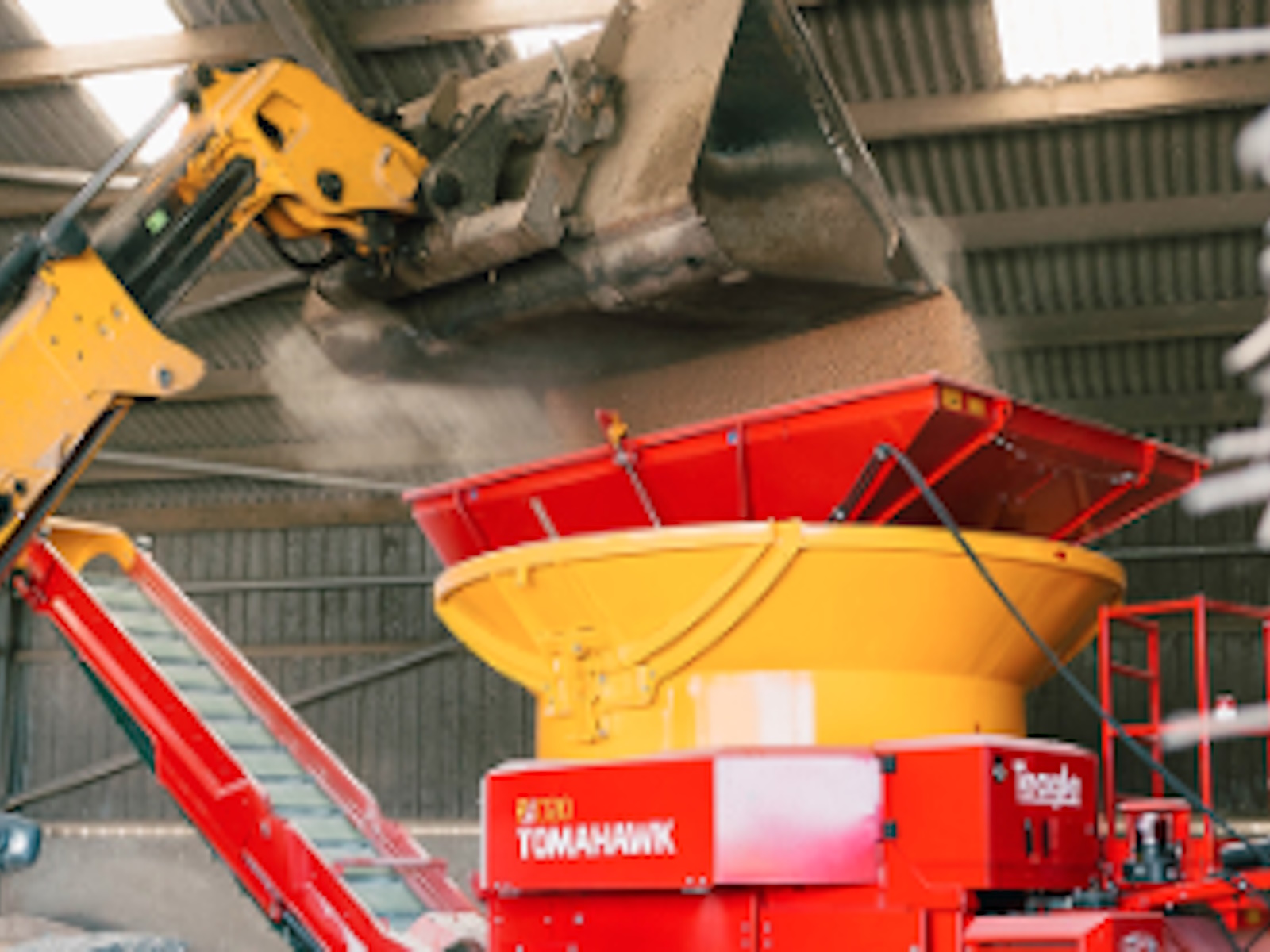

• Easier Loading: The tub shape has been updated to make it easier to load (see image).
• Safe highway transport: Folding sides have been designed into the tub for safe and compliant highway use.
• A wider range of materials: The clearance from screen to mill chamber has been doubled to improve output and enable processing of materials with higher moisture content.

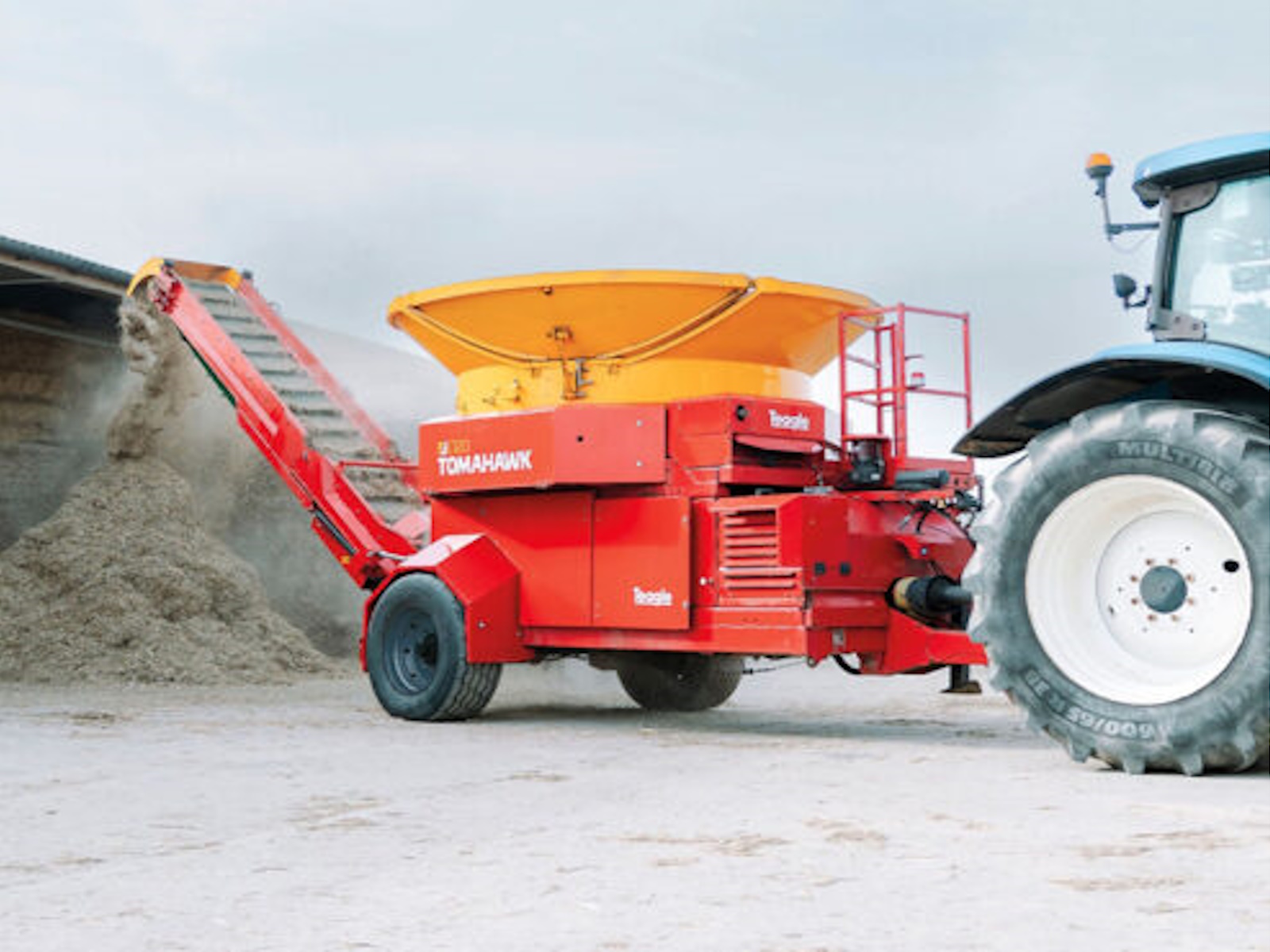

• Increased capacity conveyor: There are now two drives, one to discharge from the rotor chamber, and one to deliver processed material (see image). Delivery conveyor is wider and longer.
• Smoother power loading: Software updates ensure tractor power load peaks are minimized, whilst the output remains high.
• Easier maintenance: An auto greasing system provides regular lubrication to main driveline bearings.
• More durability: With a new sintered Tungsten Carbide hammer design.

Capacity – Up to 15t/hr
Tractor HP – min 180HP
Material output – 10-125mm
