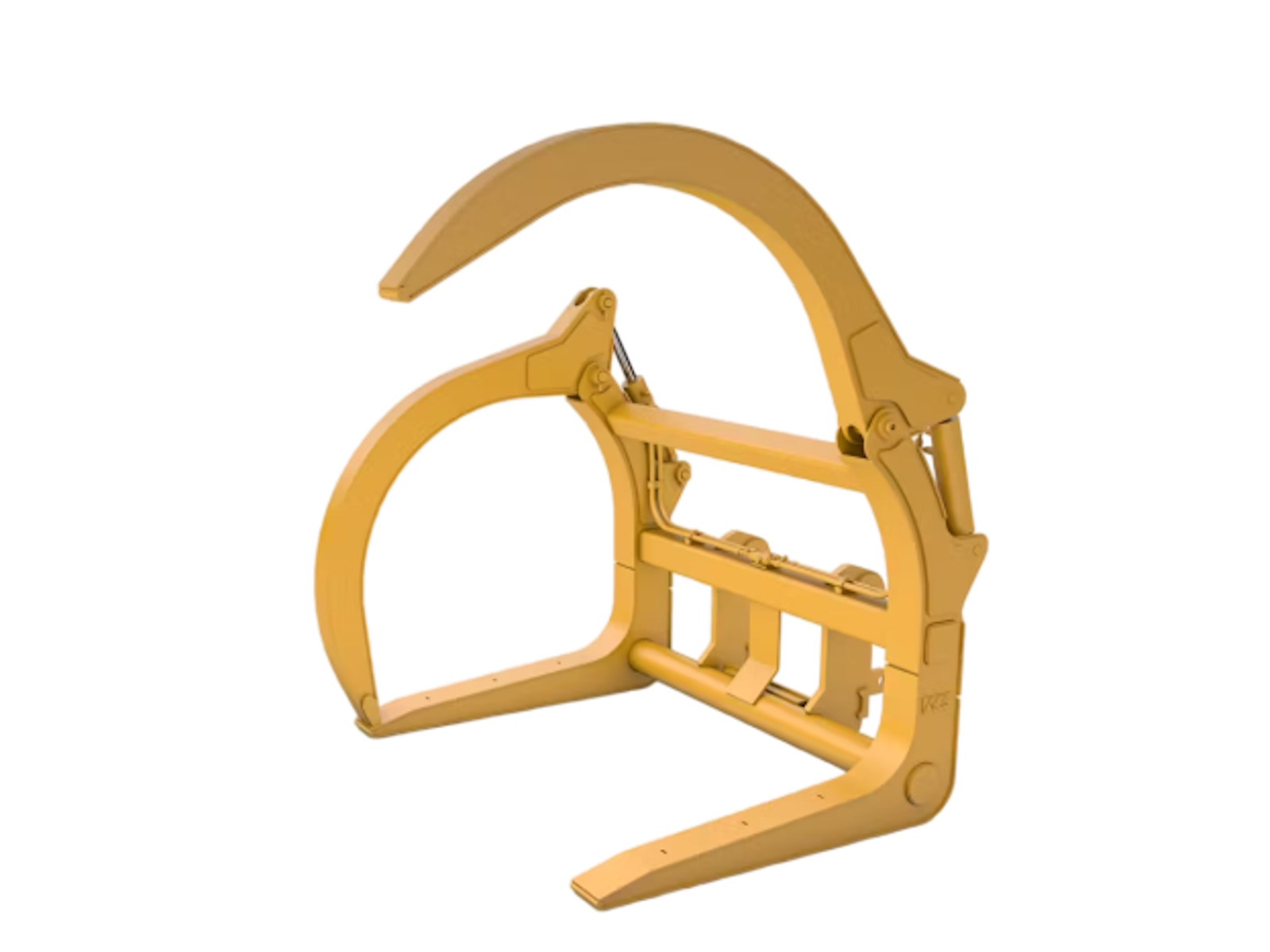

2026 ACS Mill Yard Double Top Clamp Fork 60

Double Top Clamp Mill Yard Forks for wheel loaders are ideal for mill yards where logs are handled on a regular basis. Designed for log loading, unloading and picking & handling single logs.

Dual Clamp Arms, each with their own clamping cylinder, better clamp tapered logs or unequal size loads. The clamp arms are set in a position to bypass the tines allowing further retraction to clamp smaller loads or single logs.

Mill Yard Forks contain fabricated tapered box section tines resulting in a maximum strength rating for obtaining high breakout forces and load carrying abilities. The tines are tapered to a point in front enabling the operator to insert the tines between logs for sorting and also assist in a more controlled unloading of the payload. The tapered tines work in conjuction with the large rear inside radius force the logs to be lifted & rolled upwards as the loader penetrates piles, maximizing the ability to fill the fork at every pass.

Available in either pin-on or coupler-equipped configuration.

Loader requires third fuction hydraulics to actuate clamp cylinders. Jumper hoses included.
